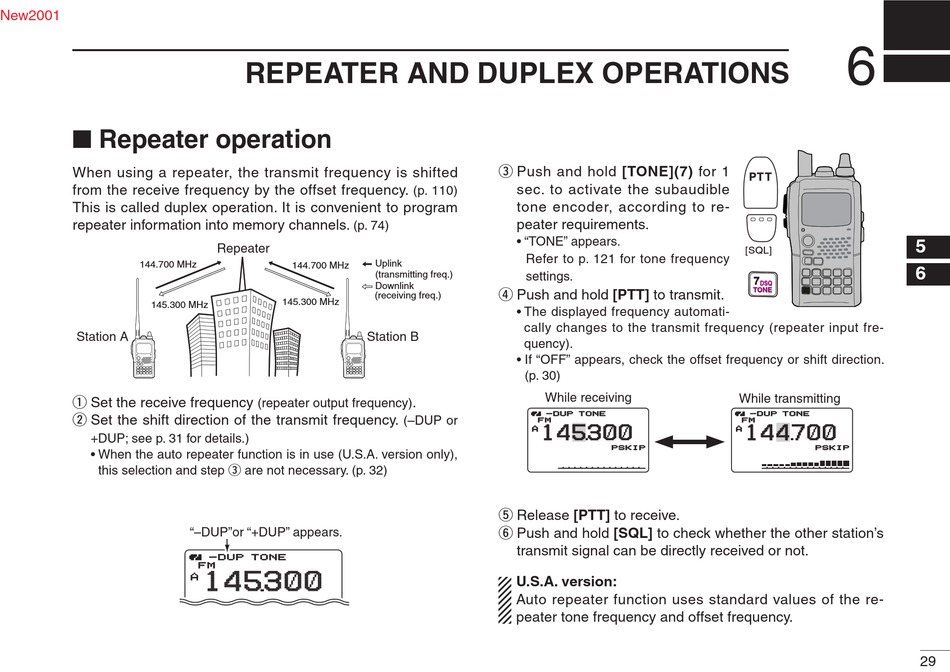

REPEATER AND DUPLEX OPERATIONS

■ Repeater operation

When using a repeater, the transmit frequency is shifted
from the receive frequency by the offset frequency.
This is called duplex operation. It is convenient to program
repeater information into memory channels.
Repeater
144.700 MHz
145.300 MHz
Station A
q Set the receive frequency
w Set the shift direction of the transmit frequency.
+DUP; see p. 31 for details.)
• When the auto repeater function is in use (U.S.A. version only),
this selection and step e are not necessary. (p. 32)
"–DUP"or "+DUP" appears.
-DUP -DUP TONE TONE
FM FM
145300 145300
A A
(p. 110)
(p. 74)
Uplink
144.700 MHz
(transmitting freq.)
Downlink
(receiving freq.)
145.300 MHz
Station B
.
(repeater output frequency)
(–DUP or
e Push and hold [TONE](7) for 1
sec. to activate the subaudible
tone encoder, according to re-
peater requirements.
• "TONE" appears.
Refer to p. 121 for tone frequency
settings.
r Push and hold [PTT] to transmit.
• The displayed frequency automati-
cally changes to the transmit frequency (repeater input fre-
quency).
• If "OFF" appears, check the offset frequency or shift direction.
(p. 30)
While receiving
-DUP -DUP TONE TONE
FM FM
145300 145300
A A
PSKIP PSKI
t Release [PTT] to receive.
y Push and hold [SQL] to check whether the other station's
transmit signal can be directly received or not.
U.S.A. version:
Auto repeater function uses standard values of the re-
peater tone frequency and offset frequency.
6
1
2
3
4
5
[SQL]
6
7
DSQ
TONE
7
8
9
10
While transmitting
11
-DUP -DUP TONE TONE
FM FM
144700 144700
A
12
PSKI PSKIP
13
14
15
16
17
18
19
29
