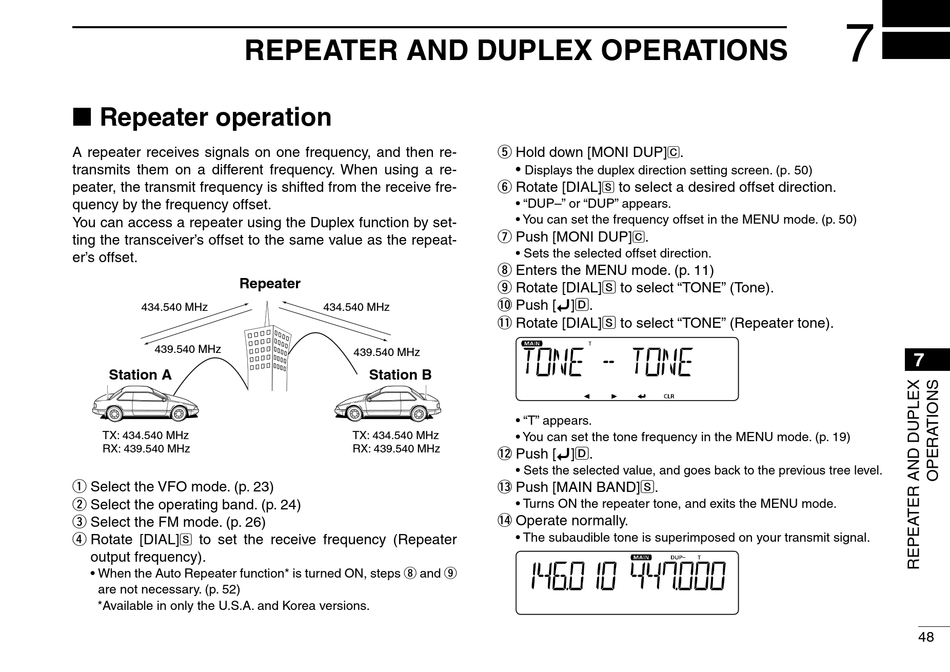

REPEATER AND DUPLEX OPERATIONS

■ Repeater operation

A repeater receives signals on one frequency, and then re-
transmits them on a different frequency. When using a re-
peater, the transmit frequency is shifted from the receive fre-
quency by the frequency offset.
You can access a repeater using the Duplex function by set-
ting the transceiver's offset to the same value as the repeat-
er's offset.
Repeater
434.540 MHz
439.540 MHz
Station A
TX: 434.540 MHz
RX: 439.540 MHz
Select the VFO mode. (p. 23)
q
Select the operating band. (p. 24)
w
Select the FM mode. (p. 26)
e
Rotate [DIAL] to set the receive frequency (Repeater
r
S
output frequency).
• When the Auto Repeater function* is turned ON, steps i and o
are not necessary. (p. 52)
*Available in only the U.S.A. and Korea versions.
t
y
u
i
o Rotate [DIAL]S to select "TONE" (Tone).
!0 Push [ï]D.
434.540 MHz
!1 Rotate [DIAL]S to select "TONE" (Repeater tone).
439.540 MHz
Station B
TX: 434.540 MHz
RX: 439.540 MHz
!2 Push [ï]D.
!3 Push [MAIN BAND]S.
!4 Operate normally.
Hold down [MONI DUP] .
C
•
Displays the duplex direction setting screen. (p. 50)
Rotate [DIAL] to select a desired offset direction.
S
• "DUP–" or "DUP" appears.
• You can set the frequency offset in the MENU mode. (p. 50)
Push [MONI DUP] .
C
• Sets the selected offset direction.
Enters the MENU mode. (p. 11)
• "T" appears.
• You can set the tone frequency in the MENU mode. (p. 19)
• Sets the selected value, and goes back to the previous tree level.
• Turns ON the repeater tone, and exits the MENU mode.
• The subaudible tone is superimposed on your transmit signal.
7
7
48
