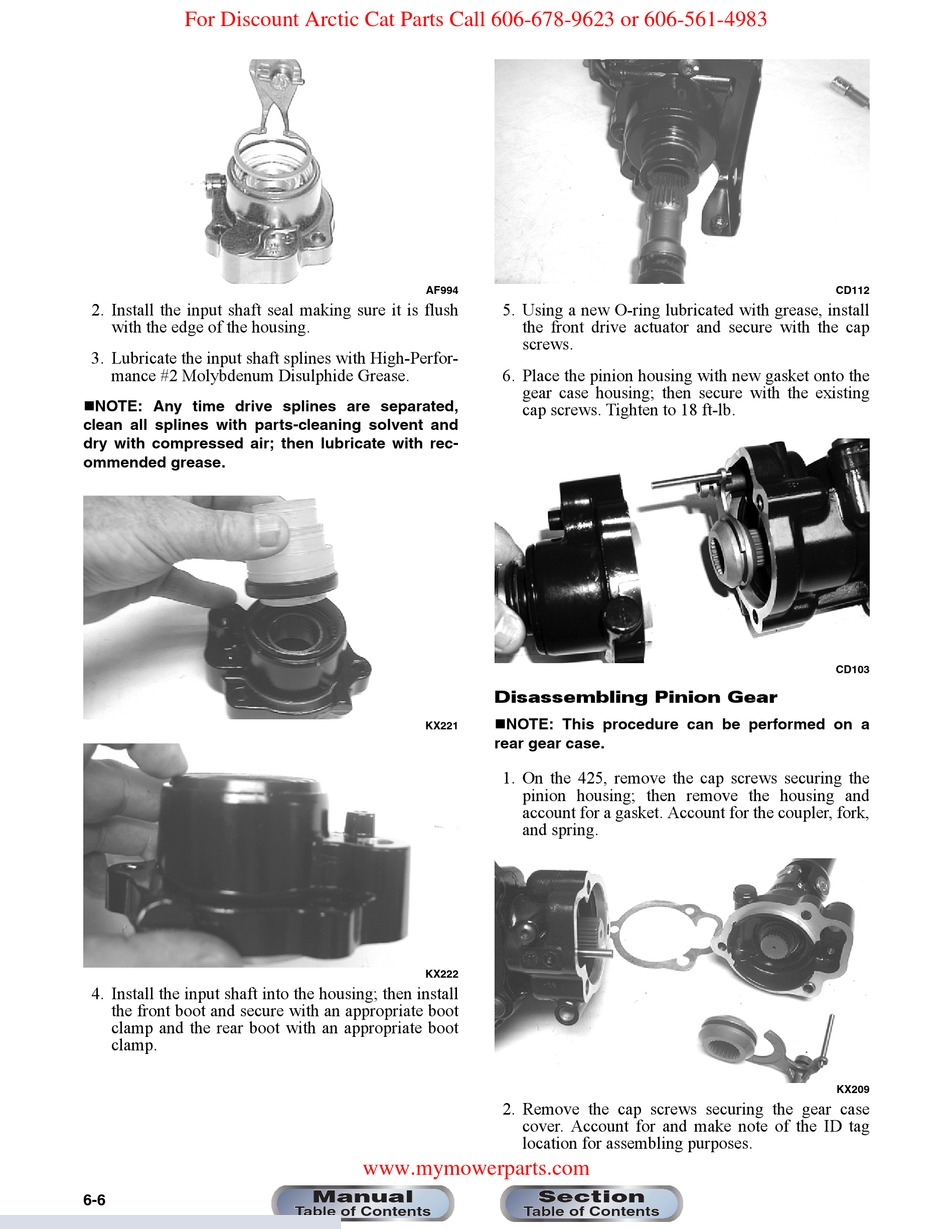

2. Install the input shaft seal making sure it is flush
with the edge of the housing.
3. Lubricate the input shaft splines with High-Perfor-
mance #2 Molybdenum Disulphide Grease.
NOTE: Any time drive splines are separated,
clean all splines with parts-cleaning solvent and
dry with compressed air; then lubricate with rec-
ommended grease.
4. Install the input shaft into the housing; then install
the front boot and secure with an appropriate boot
clamp and the rear boot with an appropriate boot
clamp.
6-6
AF994
KX221
KX222
www.mymowerparts.com
Manual
Table of Contents
5. Using a new O-ring lubricated with grease, install
the front drive actuator and secure with the cap
screws.
6. Place the pinion housing with new gasket onto the
gear case housing; then secure with the existing
cap screws. Tighten to 18 ft-lb.
Disassembling Pinion Gear
NOTE: This procedure can be performed on a
rear gear case.
1. On the 425, remove the cap screws securing the
pinion housing; then remove the housing and
account for a gasket. Account for the coupler, fork,
and spring.
2. Remove the cap screws securing the gear case
cover. Account for and make note of the ID tag
location for assembling purposes.
