Cleaning Hammer Bank Assembly–Ribbon Drive To Service Position - Printronix p300 Maintenance Manual
Line printer
Hide thumbs
Also See for p300:
- User's reference manual (153 pages) ,
- User's reference manual (148 pages)
Table of Contents
Advertisement
1. POWER CORD
2. COVER
3. FORMS THICKNESS LEVER
4. RIBBON LOCKS
5. RIBBON SPOOLS
6. RIBBON HUBS
7. SCREW, SOCKET HEAD (2)
8. RIBBON DRIVE ASSEMBLY
9. RETAINING CLIP (2)
10. SUPPORT PIN, VERTICAL COVER
11. SHOULDER SCREW

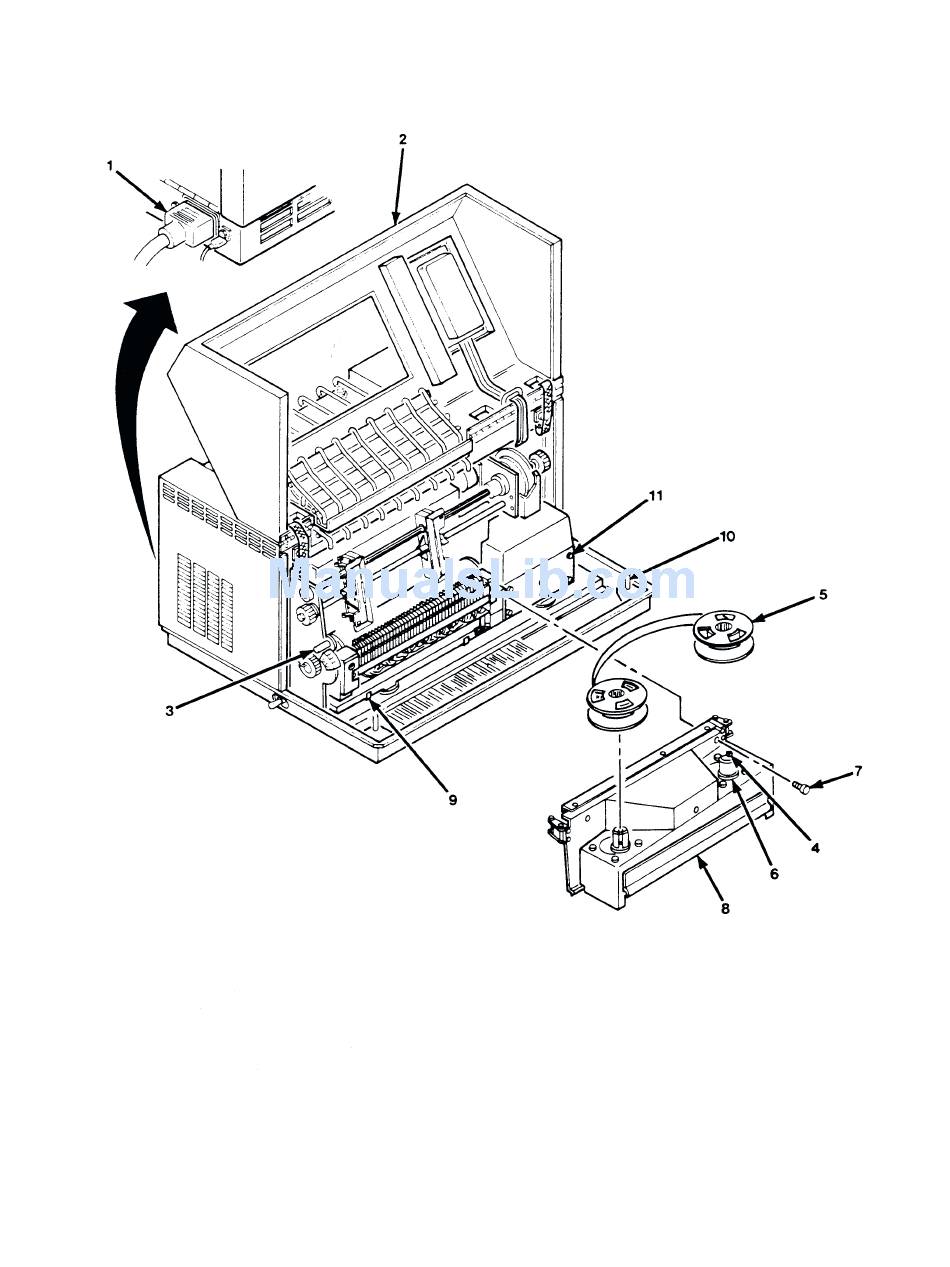

Figure 3–2. Cleaning Hammer Bank Assembly – Ribbon Drive to Service Position
P300/P600 Preventive Maintenance
NOTE:
P600 SHOWN
3–7
