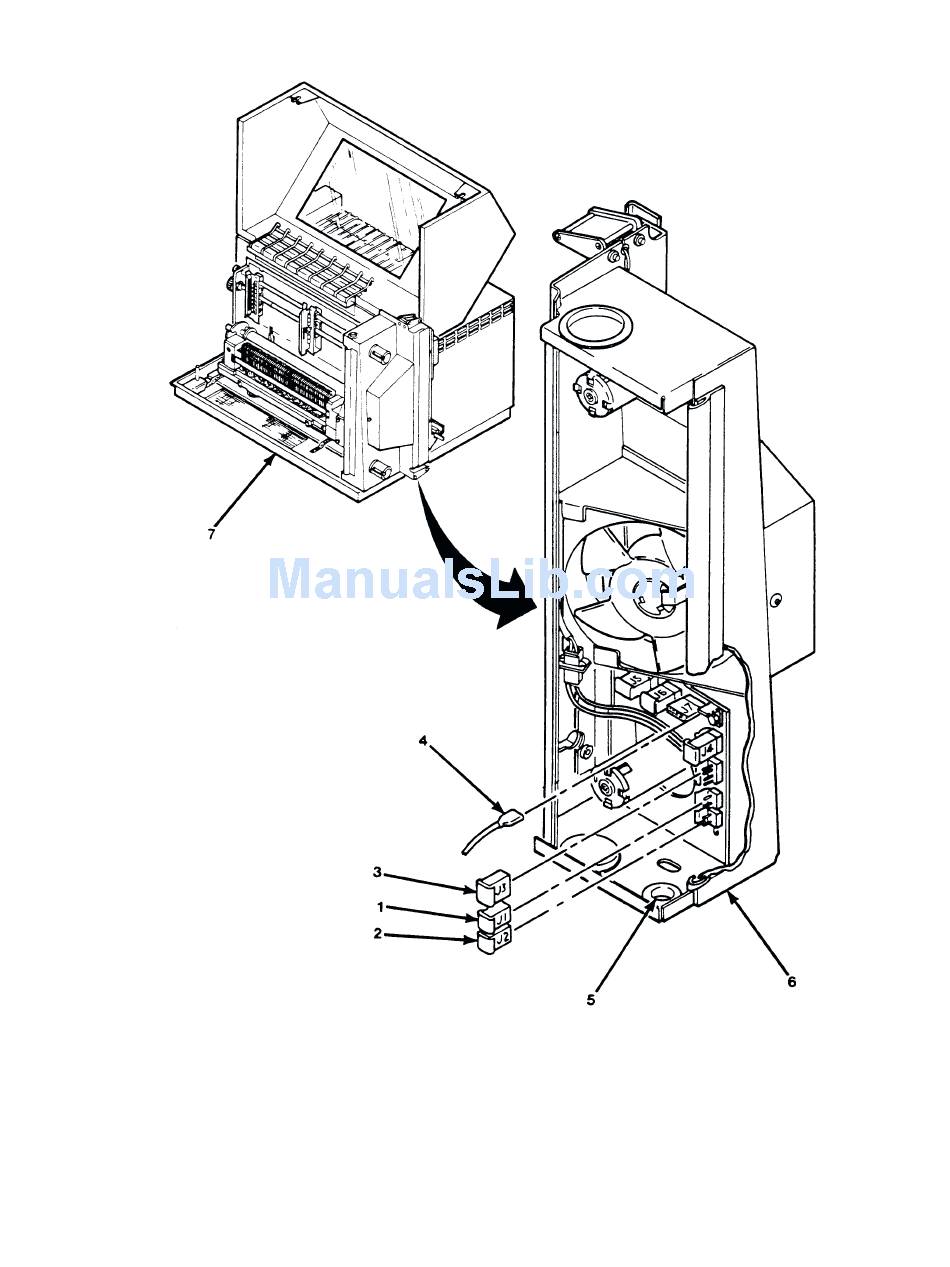

1. MATING CONNECTOR FOR J1
2. MATING CONNECTOR FOR J2
3. MATING CONNECTOR FOR J3
4. GROUND WIRE
5. GROMMET
6. RIBBON DRIVE ASSEMBLY
7. PRINTER
Figure 5–17. Ribbon Drive Removal/Installation, Pedestal Models
5–40
P300/P600 Corrective Maintenance
