Paper Motion Sensor Removal/Installation - Printronix p300 Maintenance Manual
Line printer
Hide thumbs
Also See for p300:
- User's reference manual (153 pages) ,
- User's reference manual (148 pages)
Table of Contents
Advertisement
NOTE:
PLASTIC TRACTOR SHOWN

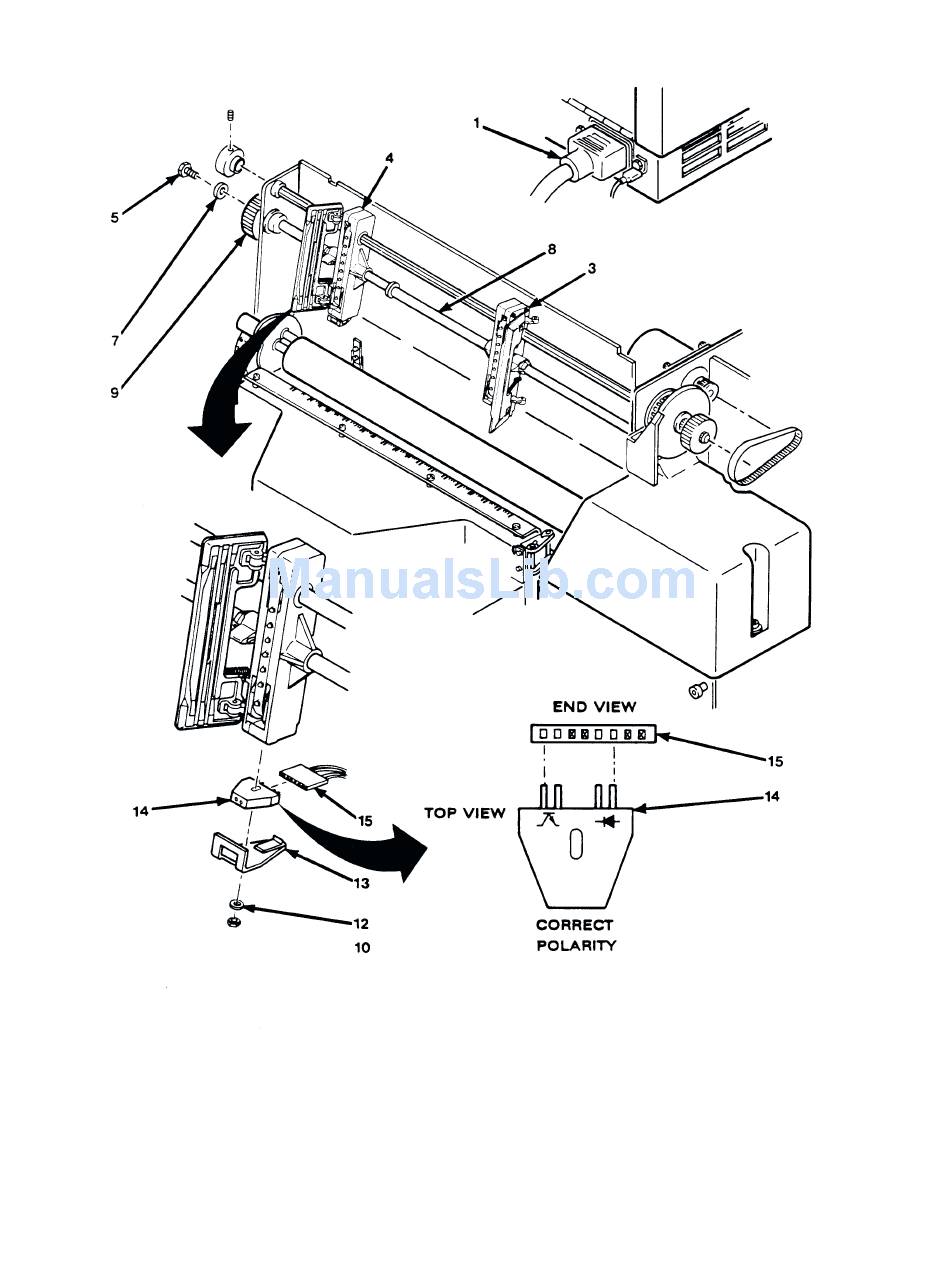

Figure 5–36. Paper Motion Sensor Removal/Installation
P300/P600 Corrective Maintenance
1. POWER CORD
2. COVER (NOT SHOWN)
3. RIGHT TRACTOR
4. LEFT TRACTOR
5. SCREW
6. (DELETED)
7. WASHER
8. SUPPORT SHAFT
9. KNOB
10. NUT
11. (DELETED)
12. WASHER
13. RETAINER
14. SENSOR
15. CABLE
5–83
