1. POWER CORD
2. FRONT COVER
3. NUT (4)
4. COVER
5. CONTROL PANEL
6. WIRE CLIP
P300/P600 Corrective Maintenance

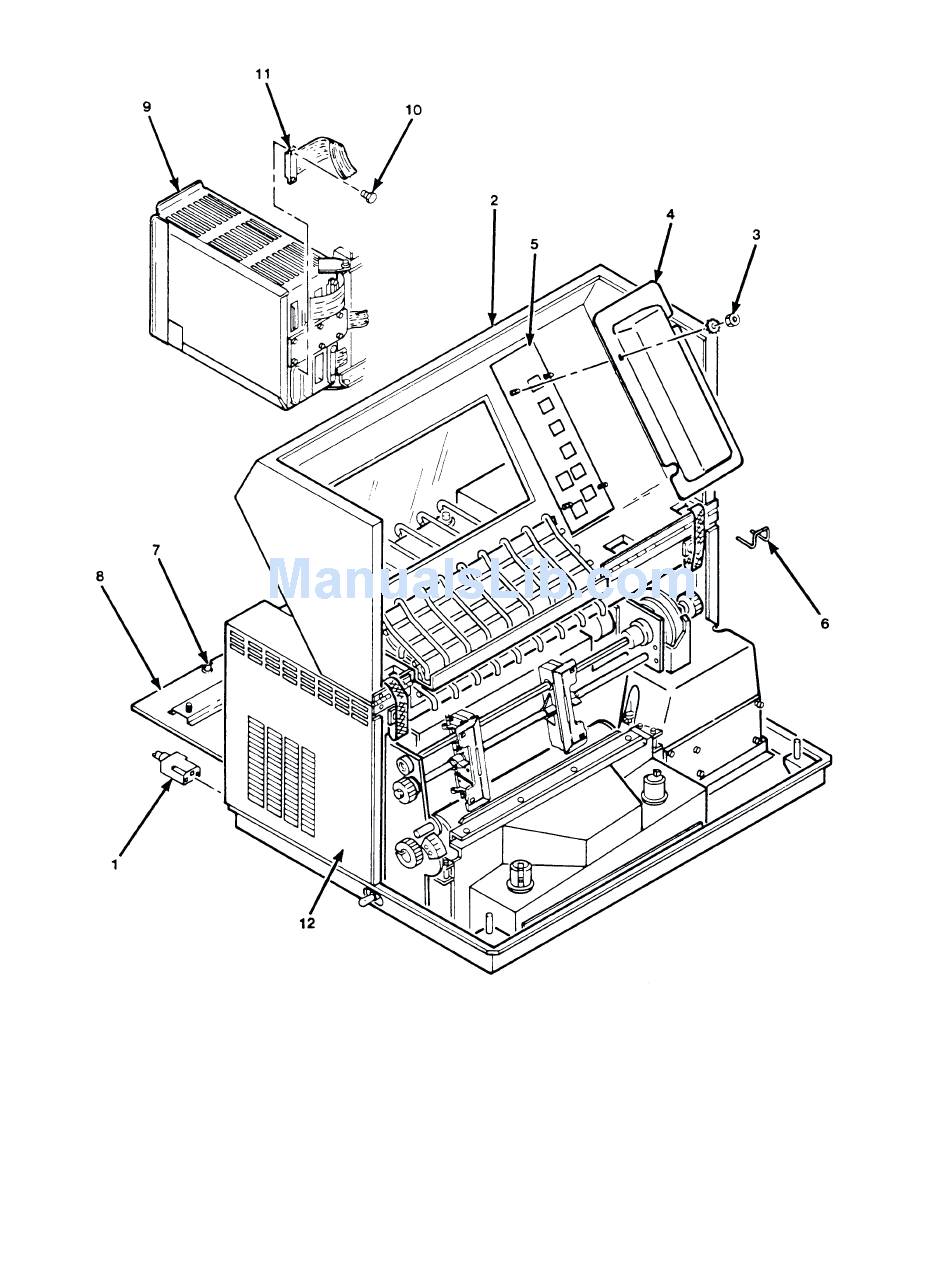

Figure 5–16. Control Panel Removal/Installation
7. FASTENER (2)
8. REAR DOOR
9. CARD CAGE
10. SCREW (2)
11. CONNECTOR LBP1
12. PRINTER
5–37
