Power Supply Removal/Installation - Printronix p300 Maintenance Manual
Line printer
Hide thumbs
Also See for p300:
- User's reference manual (153 pages) ,
- User's reference manual (148 pages)
Table of Contents
Advertisement
1. FASTENERS (2)
2. REAR DOOR
3. CARD CAGE
4. CABLES
5. POWER SUPPLY PCBA
6. LEADS
7. AC LINE FILTER
8. SCREW (2)
9. STAR WASHER (2)
10. CAPACITOR C1
11. POWER SUPPLY ASSEMBLY
12. NUT (2)
13. TRANSFORMER COVER
14. SCREW
15. TERMINAL LUG
16. SCREW
17. TERMINAL LUG
18. PRINTER BASE
P300/P600 Corrective Maintenance

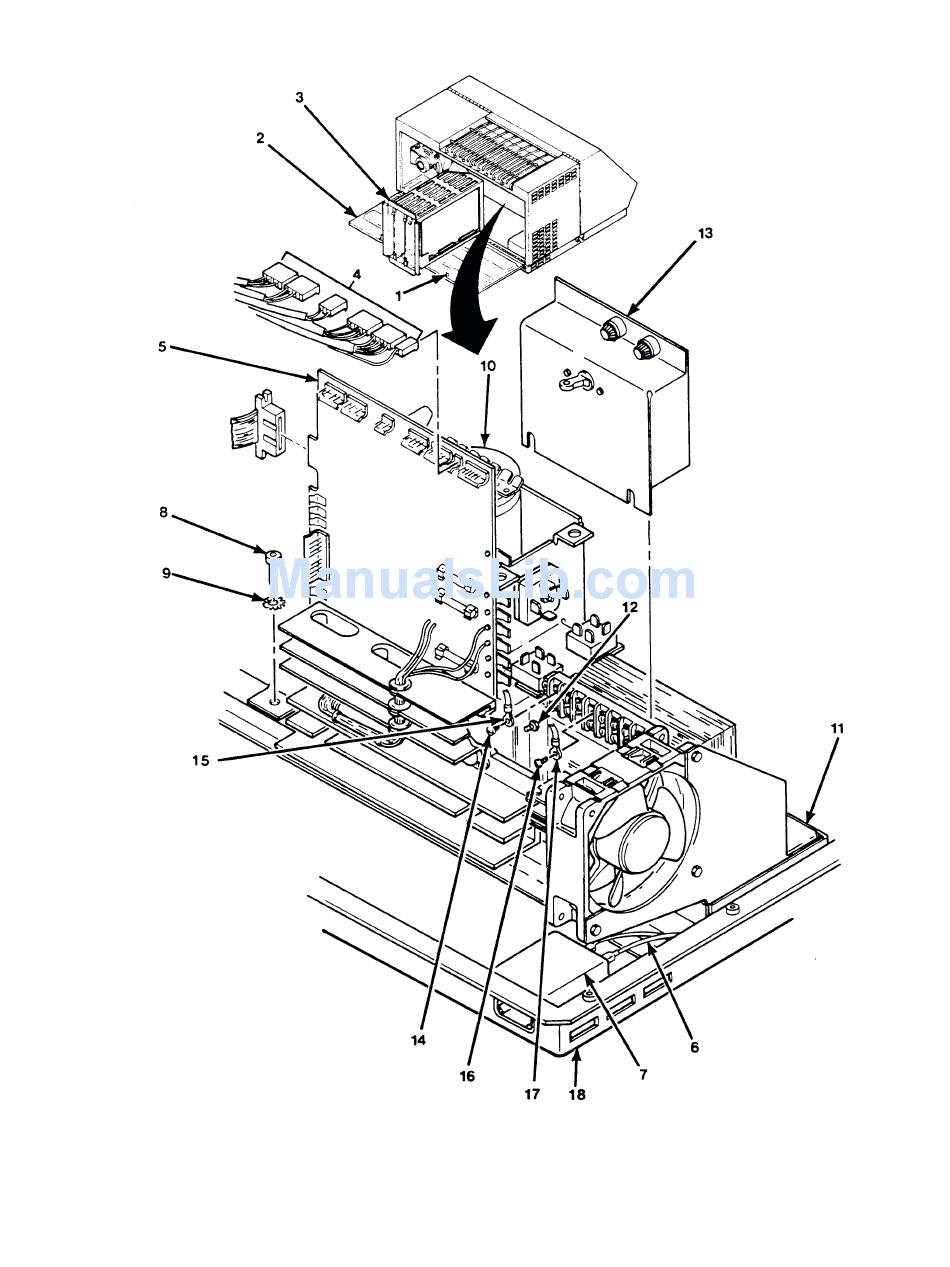

Figure 5–41. Power Supply Removal/Installation
P600 SHOWN
5–93
