5–68

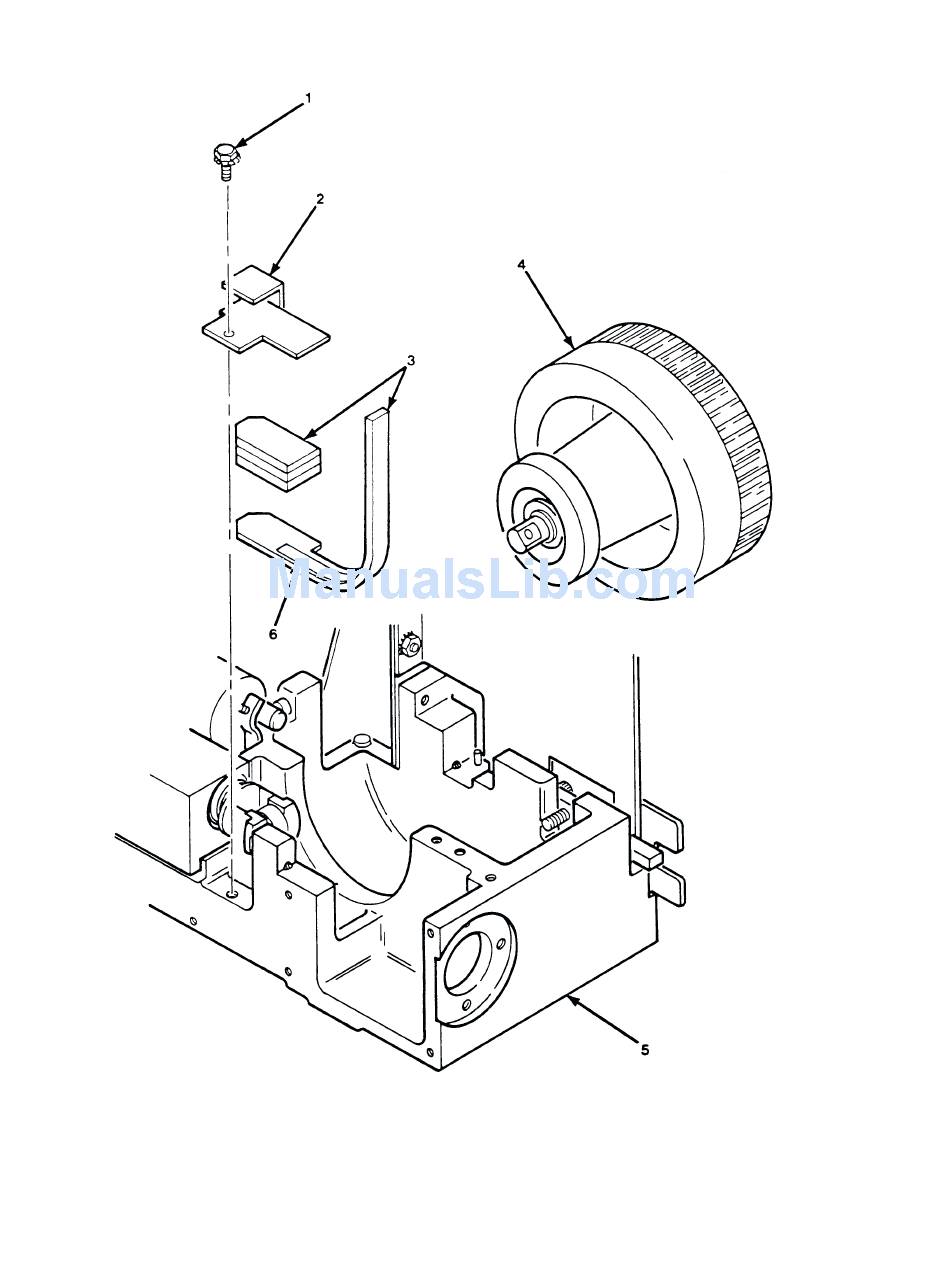

Figure 5–28. Cam Wick Removal/Installation
1. SCREW
2. CLIP
3. WICK
4. FLYWHEEL ASSEMBLY
5. HOUSING
6. LEAF SPRING
NOTE: LEAF SPRING FITS UNDER
UPPER LIP OF CLIP.
P300/P600 Corrective Maintenance
