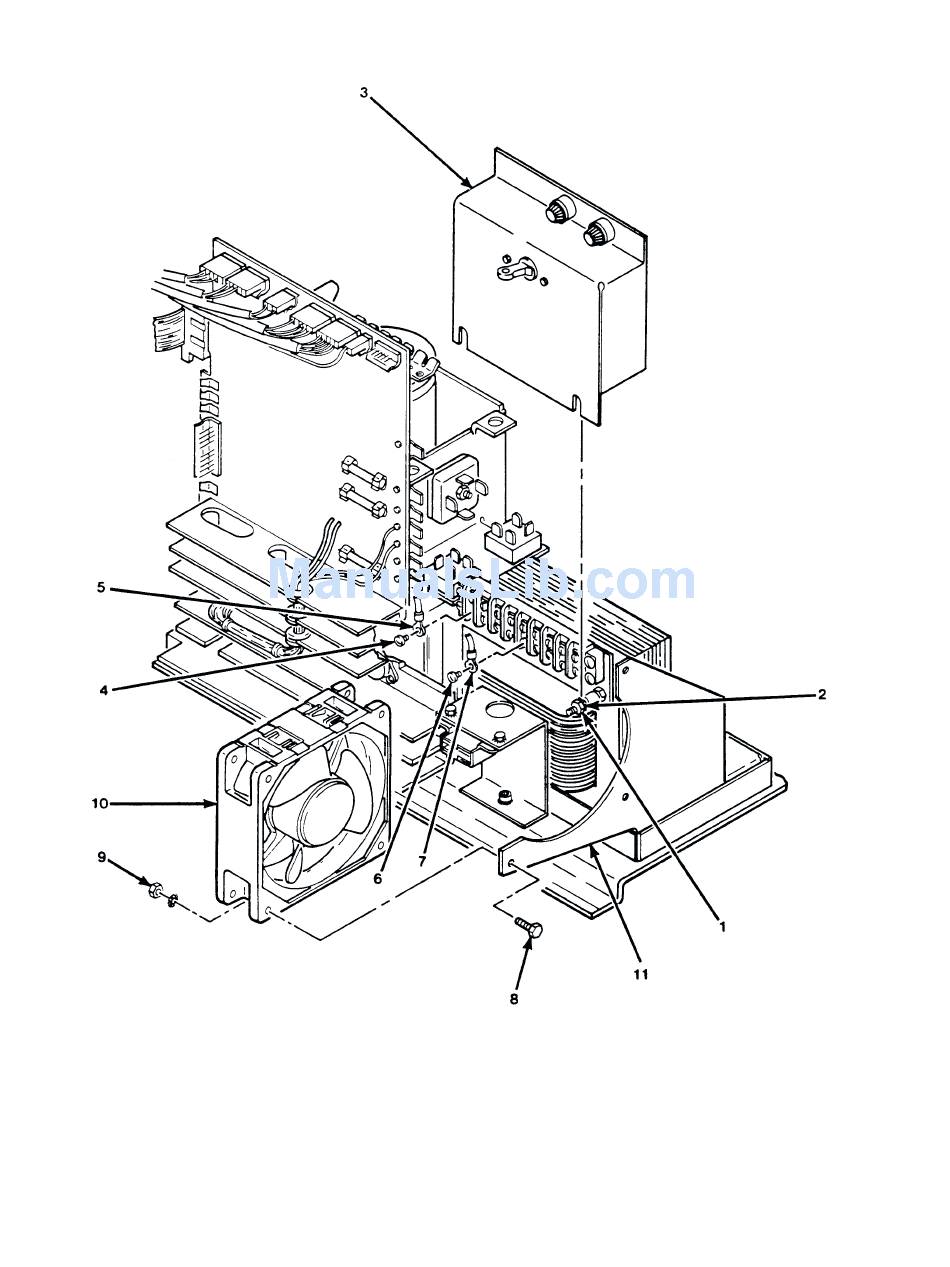

Figure 5–42. Rear Fan Removal/Installation, Pedestal Models
P300/P600 Corrective Maintenance
1. NUT (2)
2. WASHER (2)
3. TRANSFORMER COVER (3)
4. SCREW
5. TERMINAL LUG
6. SCREW
7. TERMINAL LUG
8. SCREW (3)
9. NUT (3)
10. FAN
11. HOUSING
5–95
