Cover Removal/Installation, Pedestal Models - Printronix p300 Maintenance Manual
Line printer
Hide thumbs
Also See for p300:
- User's reference manual (153 pages) ,
- User's reference manual (148 pages)
Table of Contents
Advertisement
1. POWER CORD
2. I/O CABLE
3. SCREW (6)
4. FASTENER, DOOR (2)
5. DOOR, REAR
6. NUT
7. LUG
8. SUPPORT CABLE
9. STUD, THREADED
10. COVER, FRONT
11. CLIP, RETAINING (2)
12. PEG (2)
13. COVER, REAR
14. CARD CAGE
15. SCREW (2)
16. CONNECTOR LBP1
17. BASE
5–34

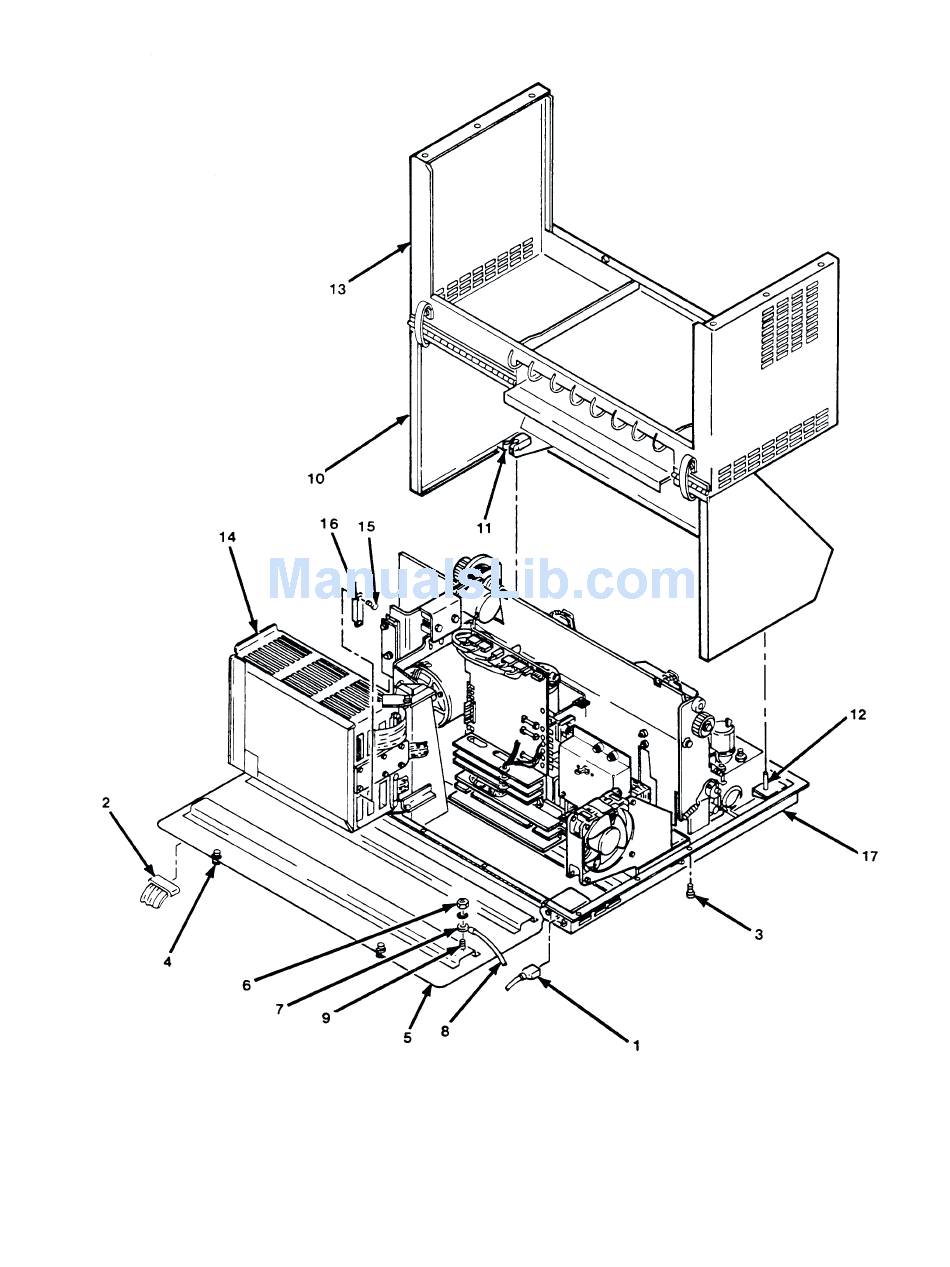

Figure 5–14. Cover Removal/Installation, Pedestal Models
NOTE:
SECONDARY FUSES
NOT SHOWN
P300/P600 Corrective Maintenance
