Reference Voltage Circuit - Printronix p300 Maintenance Manual

Line printer
Hide thumbs Also See for p300:
Table of Contents

Advertisement

5V REGULATOR
+5V
+9.5V
+2.6V
2.6V REGULATOR
+2.6V
VREF 4.6V
+
VREF 1V
–

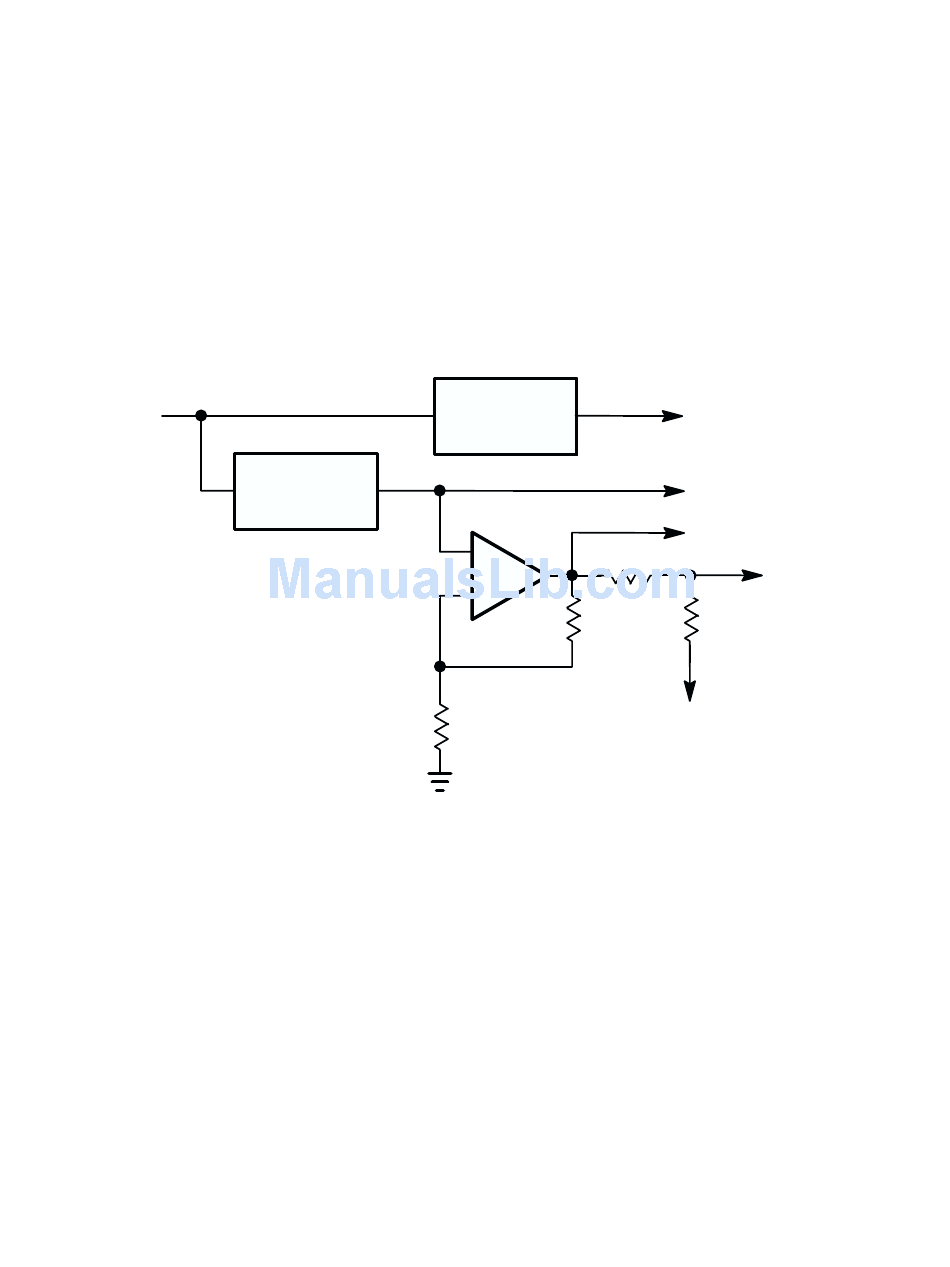

Figure 2–41. Reference Voltage Circuit, P600
2–64
P300/P600 Principles of Operation
