P300/P600 Preventive Maintenance

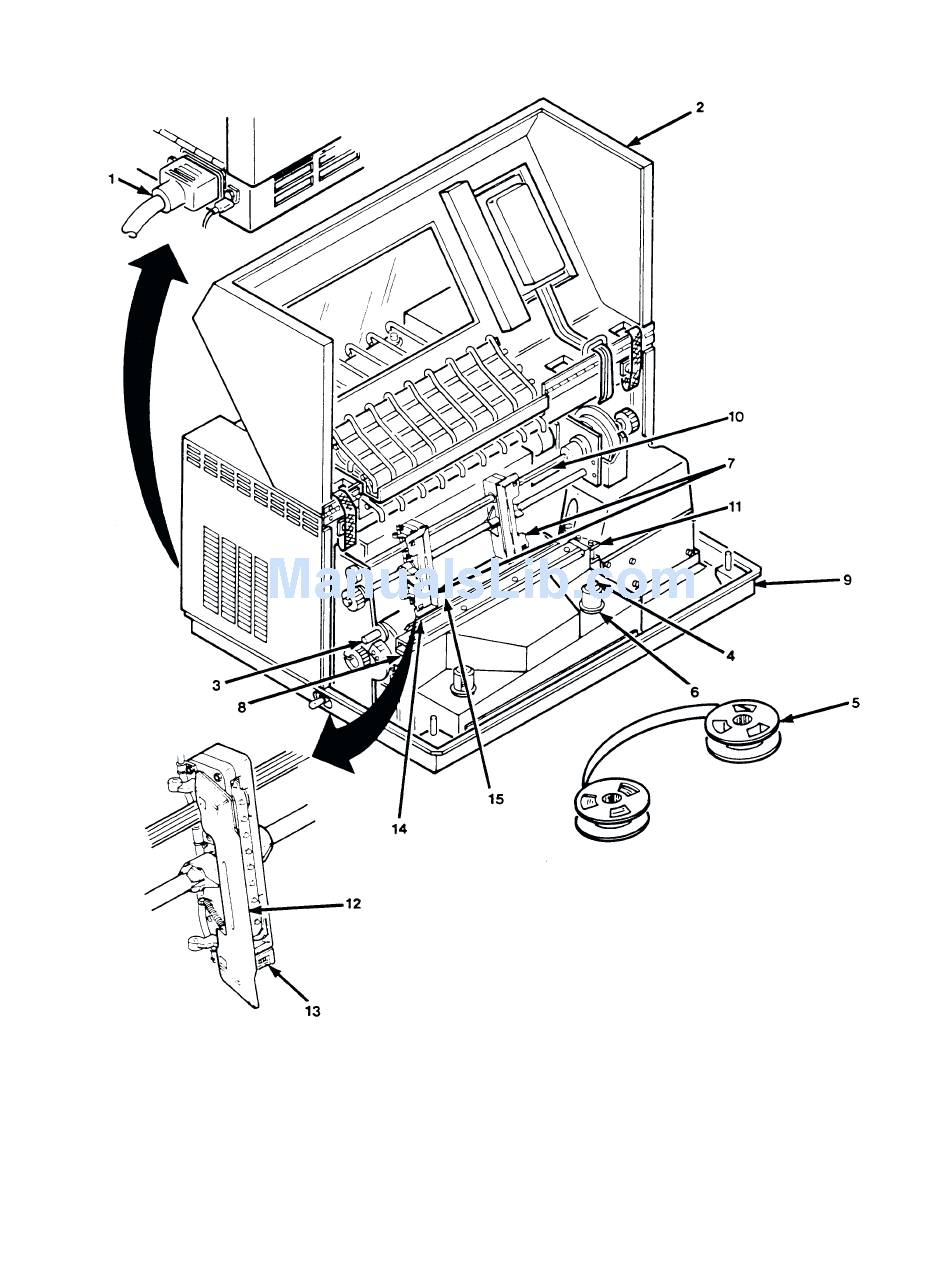

Figure 3–1. Cleaning Interior of Cabinet
1. POWER CORD
2. COVER
3. FORMS THICKNESS LEVER
4. LOCKING LATCH
5. RIBBON SPOOL (2)
6. RIBBON HUB (2)
7. TRACTOR (2)
8. HAMMER BANK
9. BASE PAN
10. SPLINE SHAFT
11. RIBBON GUIDES
12. TRACTOR DOOR
13. PAPER MOTION DETECTOR
14. RIBBON PATH
15. PLATEN
3–3
