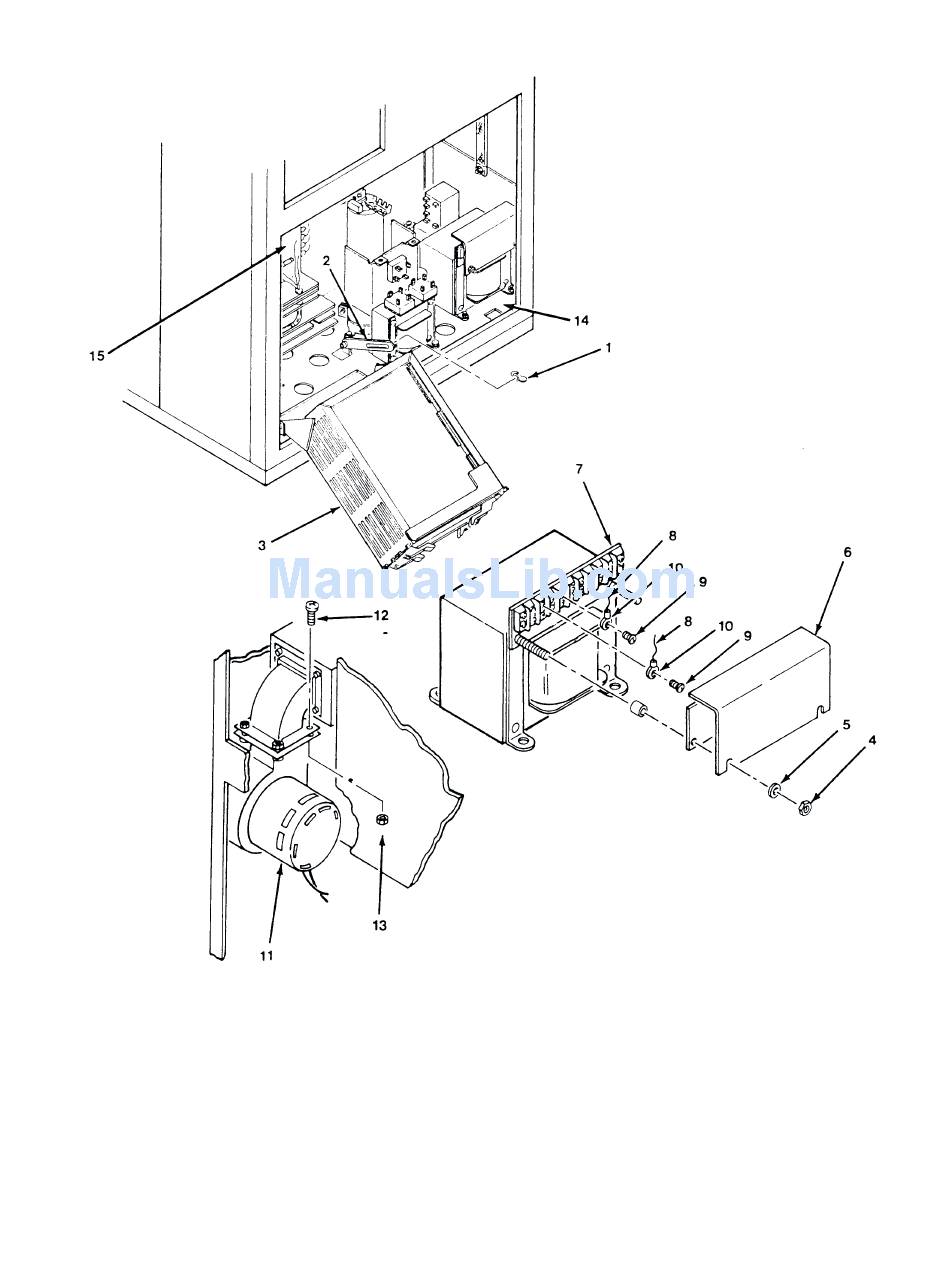

Figure 5–22. Ribbon Drive Blower Removal/Installation, Floor Cabinet (XQ) Models
P300/P600 Corrective Maintenance
1. WING NUT
2. BRACKET
3. CARD CAGE
4. NUT (2)
5. WASHER (2)
6. TERMINAL BOARD COVER
7. TERMINAL BOARD
8. BLOWER LEADS
9. SCREW (4)
10. TERMINAL LUGS
11. BLOWER
12. SCREW (4)
13. NUT (4)
14. POWER SUPPLY ASSEMBLY
15. POWER SUPPLY PCBA
5–49
