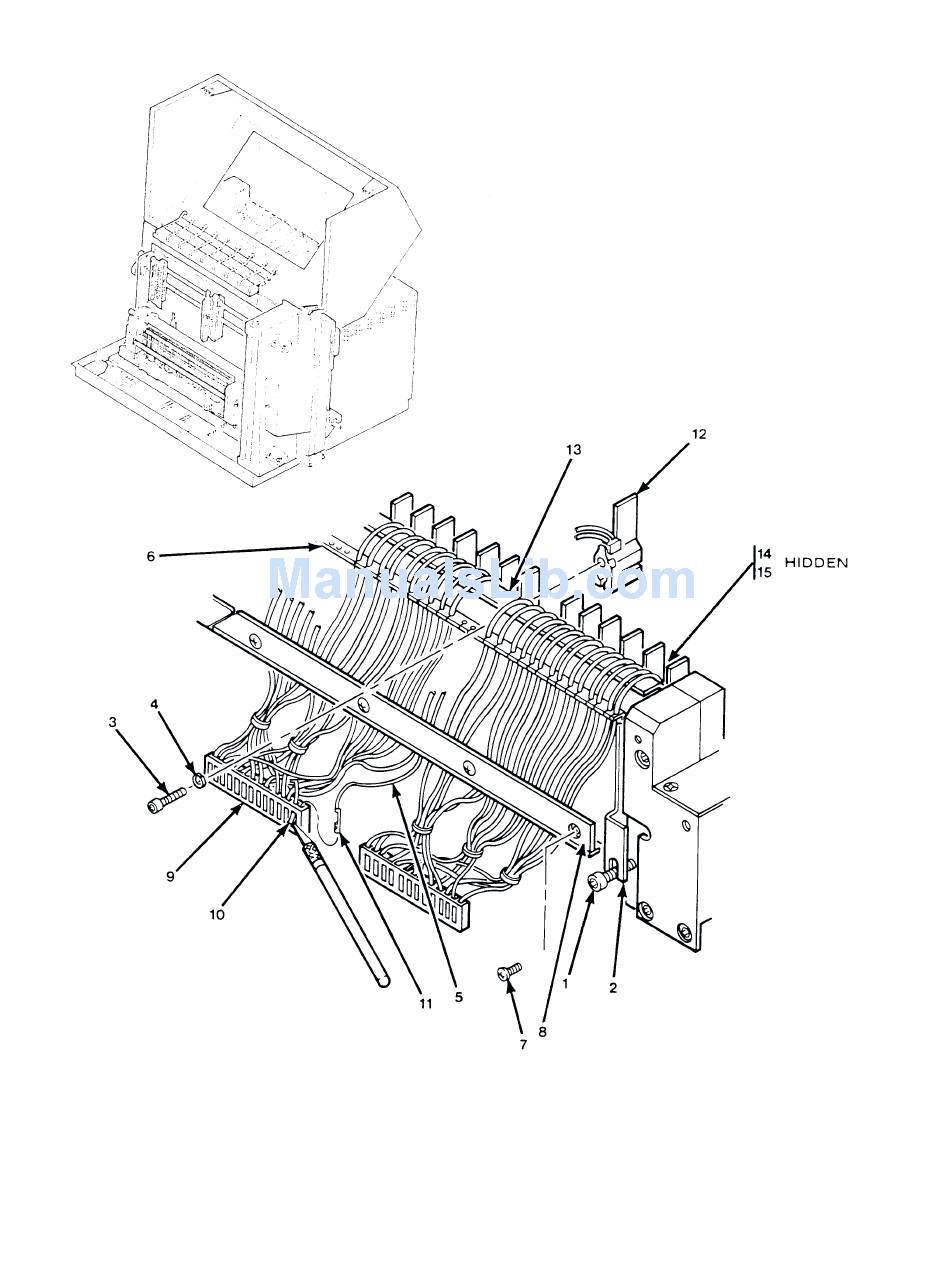

Figure 5–25. Hammer Coil Removal/Installation (1 of 2)
5–60
1. SCREW (2)
2. COMB BRACKET
3. COIL SCREW
4. WASHER
5. COIL LEADS (2)
6. COMB
7. SCREW (4)
8. WIRE CLAMP
–A–
P600
P300/P600 Corrective Maintenance
9. CONNECTOR
10. RELEASING TAB
11. TERMINAL
12. COIL
13. HAMMER BANK
14. HAMMER SPRING
