18. SCREW (2)
19. COMB BRACKET
20. CONNECTOR (4)
21. SCREW (2)
22. WASHER (2)
23. CONNECTOR S2
24. CASTING
25. CONNECTOR S1
26. CONNECTOR S3
27. CONNECTOR S4
28. HAMMER BANK
CABLE HARNESS
29. SHUTTLE MOTOR

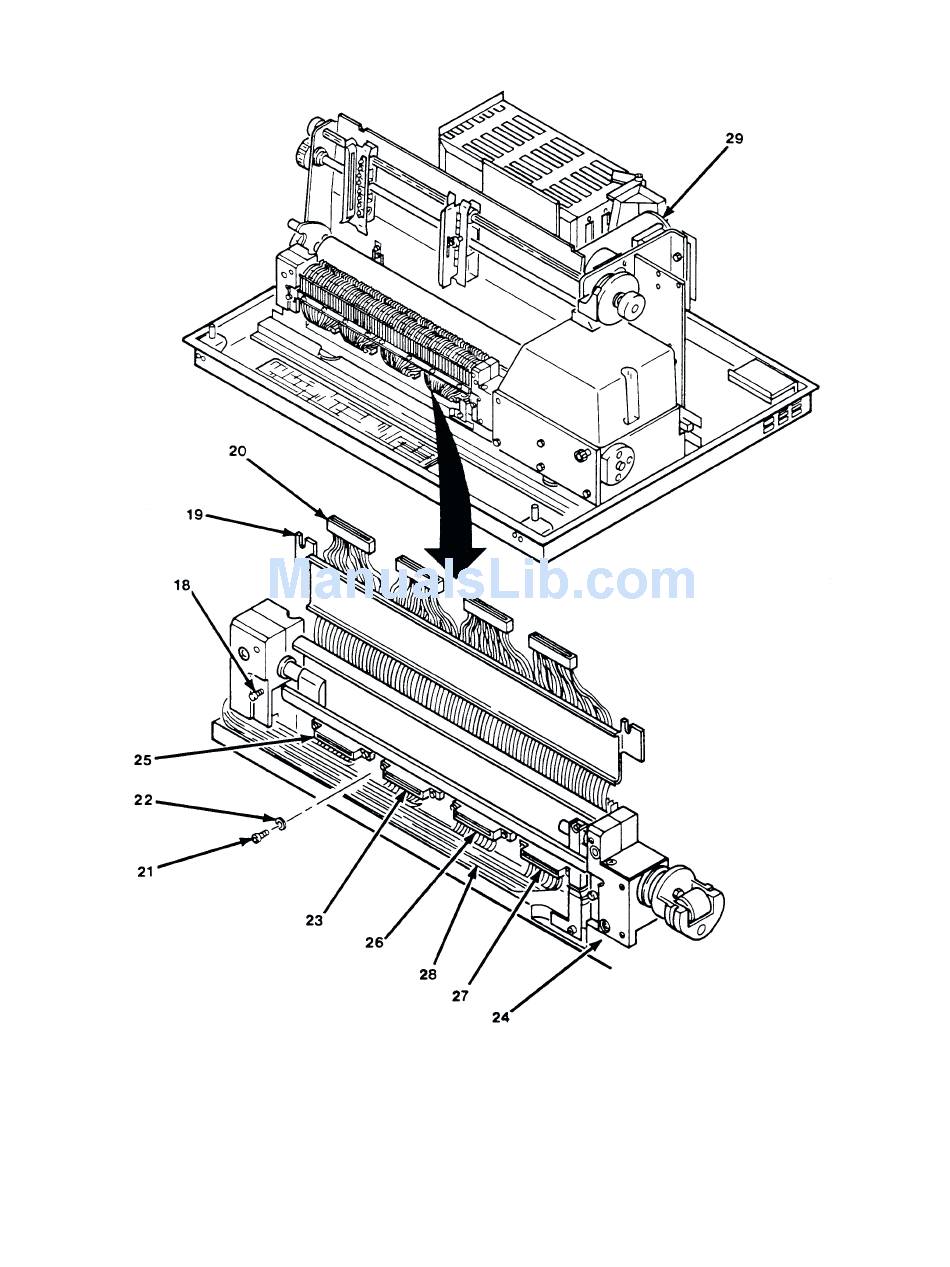

Figure 5–46. Hammer Bank Cable Harness Removal/Installation, P600 Only
(2 of 2)
