AC and DC Coupling

AC coupling (use of DC blocking capacitors in the signal path) should be used in cases
where transceiver differential voltages are compatible, but common mode voltages are not.
Some designs require AC coupling to accommodate hot plug-in, and/or differing power
supply voltages at different transceivers. This is illustrated in
Capacitors of value 0.01 μF in a 0402 (EIA) package are suitable for AC coupling at
3.125 Gb/s when 8B/10B encoding is used. Different data rates and different encoding
schemes may require a different value.
DC coupling (direct connection) is preferable in cases where RocketIO transceivers are
interfaced with other RocketIO transceivers or other Mindspeed transceivers that have
compatible differential and common mode voltage specifications. Passive components are
not required when DC coupling is used. This is illustrated in
RocketIO™ Transceiver User Guide
UG024 (v3.0) February 22, 2007
W S
1
Trace
H
E = 4.3
r
Reference Plane

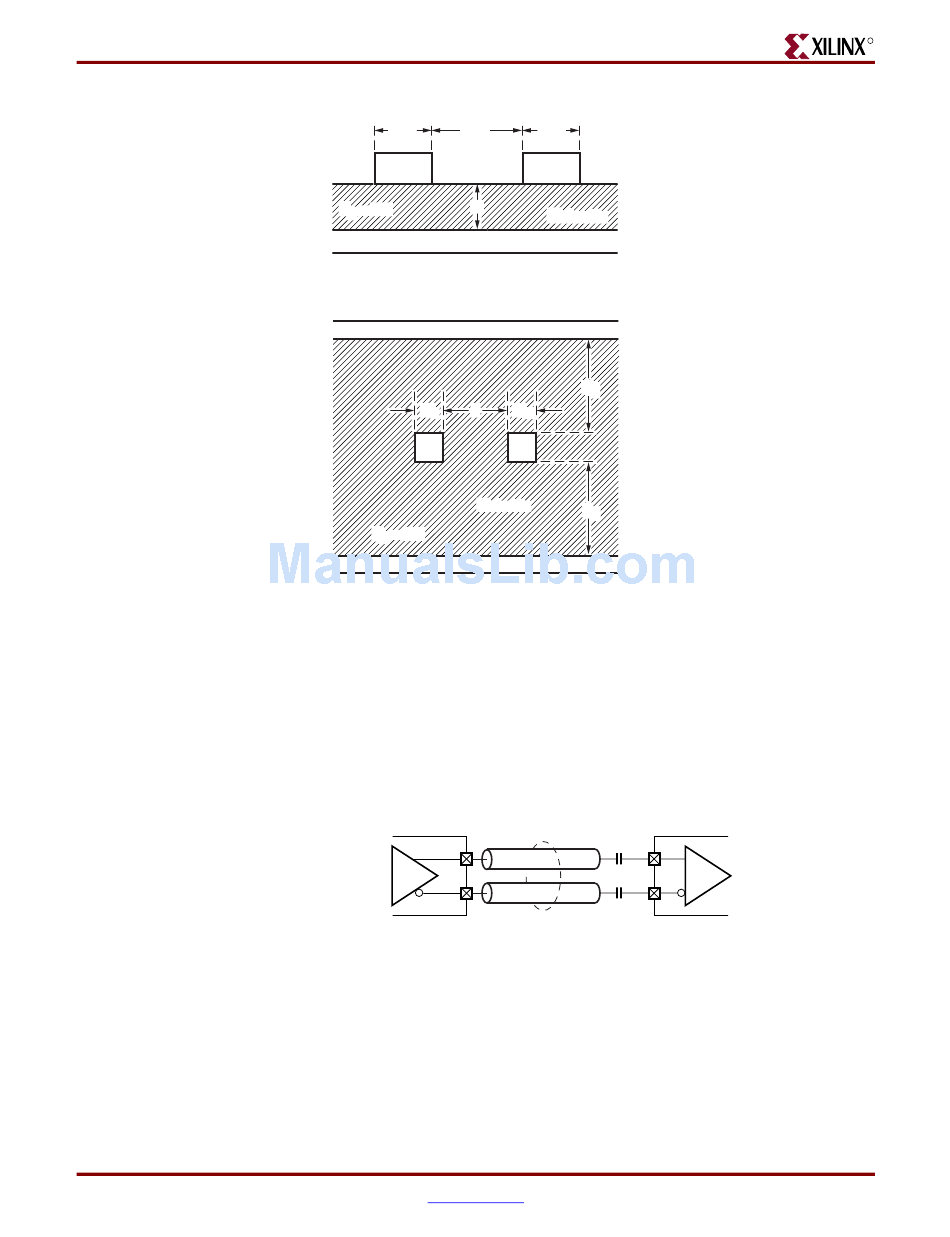

Figure 3-13: Microstrip Edge-Coupled Differential Pair
