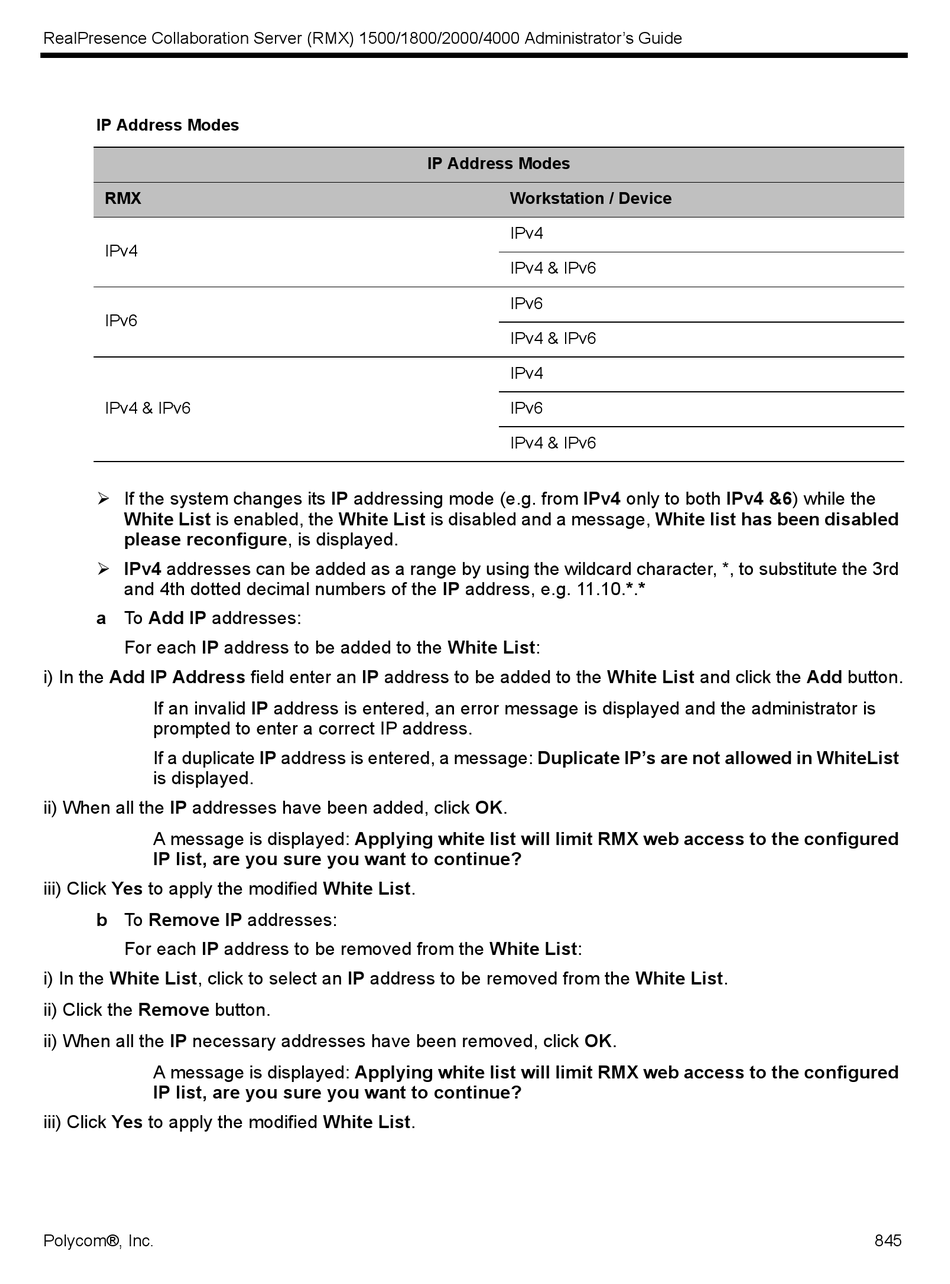

RealPresence Collaboration Server (RMX) 1500/1800/2000/4000 Administrator's Guide

IP Address Modes

 If the system changes its IP addressing mode (e.g. from IPv4 only to both IPv4 &6) while the

White List is enabled, the White List is disabled and a message, White list has been disabled

please reconfigure, is displayed.

 IPv4 addresses can be added as a range by using the wildcard character, *, to substitute the 3rd

and 4th dotted decimal numbers of the IP address, e.g. 11.10.*.*

a To Add IP addresses:

For each IP address to be added to the White List:

i) In the Add IP Address field enter an IP address to be added to the White List and click the Add button.

If an invalid IP address is entered, an error message is displayed and the administrator is

prompted to enter a correct IP address.

If a duplicate IP address is entered, a message: Duplicate IP's are not allowed in WhiteList

is displayed.

ii) When all the IP addresses have been added, click OK.

A message is displayed: Applying white list will limit RMX web access to the configured

IP list, are you sure you want to continue?

iii) Click Yes to apply the modified White List.

b To Remove IP addresses:

For each IP address to be removed from the White List:

i) In the White List, click to select an IP address to be removed from the White List.

ii) Click the Remove button.

ii) When all the IP necessary addresses have been removed, click OK.

A message is displayed: Applying white list will limit RMX web access to the configured

IP list, are you sure you want to continue?

iii) Click Yes to apply the modified White List.

Polycom®, Inc.
