Polycom RMX 2000 Installation & Quick Start Manual

RMX

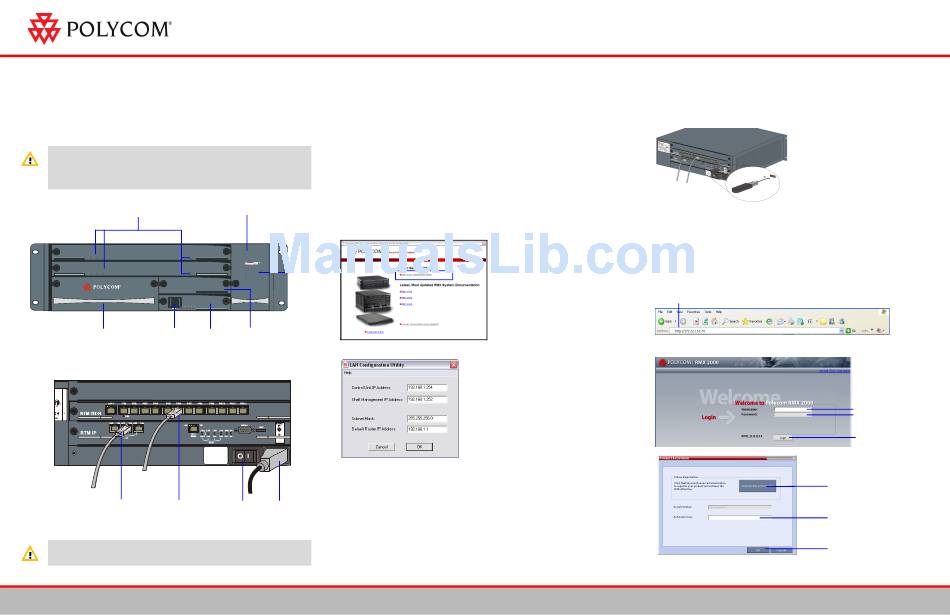

Installation Quick Start Guide for RMX 2000
Basic Setup
Before installing the RMX 2000 and performing the Basic Setup, please read the
General Safety Precautions described in the Polycom RMX 2000 Hardware Guide.
If your system package includes the RTM ISDN card, it is recommended to install it
before mounting the RMX on the rack. Refer to the RMX 1500/2000/4000 Getting
Started Guide for Installation instructions.
Front Media Cards & LEDs
Panel
ERR RDY ACT HS
ERR RDY ACT HS
RMX 2000
ERR RDYACT HD HS
PWR
Power Supply Drawer USB Ports - not for
customer use
>> Connect the cables to the rear panel of the RMX 2000 as described below:
Rear
Panel
LAN 2 Connection E1/T1 Connections
(Optional if RTM ISDN
card is installed)
Do not remove the protective plastic caps from LAN1, LAN3 and ShMG ports.
1
®
2000
Configuring the LAN Properties on the USB Key
1 Insert the USB key provided with your system into the PC workstation.
The Polycom Documentation window opens.
In Windows XP:
a
The Polycom Documentation option is automatically selected. Click OK.
In Windows 7:
a
Select Open Folder to view files using Windows Explorer.
b Double-click the index.hta file.
The Language Menu opens.
2 Select the documentation language.
Fan Drawer
3
In the License Agreement window, click the Accept Agreement button.
4 In the Initial Setup Utility, click the RMX Lan Configuration Utility hyperlink.
MPM+80 Fan &
Power
FAN
STATUS
MPM+80 Status
PWR
STATUS
LEDs
CNTL
FANS
CNTL
Control Unit Optional CPU &
& LEDs LEDs
The LanConfigUtility dialog box opens.
5 Modify the parameters in the utility's dialog box using the information supplied by
your network administrator.
6 Click OK.
7 Remove the USB Key from the PC.
Off/On Power
Switch Cable
First-time Power-up and Connection to MCU
1
Insert the USB Key containing the modified IP addresses in the USB port on the
RMX's back panel.
2
Power the RMX ON. The FAN STATUS and PWR STATUS LEDs turn ON.
System power-up sequence may take approximately 10 minutes.
During this time, the parameters in the lan.cfg file are uploaded from the USB key
to the RMX's memory and applied during the power-up sequence.
Wait for the upload process to complete. Initially all the ERR/RDY/ACT LEDs
flicker and flash. Upload is completed when all the LEDs turn off and only the red
ERR LED (on the CTNL unit) remains ON.
It remains ON until the Default IP Network Service is configured.
In the browser, enter the IP address of the RMX Control Unit and press Enter.
3
4 Once the RMX Welcome screen is displayed, remove the USB key from the RMX.
5
6
The Media card ERR/RDY/ACT LEDs flicker, until only the RDY LED turns ON.
Enter POLYCOM.
Enter POLYCOM.
Click Login.
Click to connect to Polycom
web site and register the RMX.
Click Product Registration
and follow the on screen
instructions to obtain the
Product Activation Key.
Enter or paste the Product
Activation Key obtained.
Click OK.
.
DOC2665A
