Installing the operator panel overlay

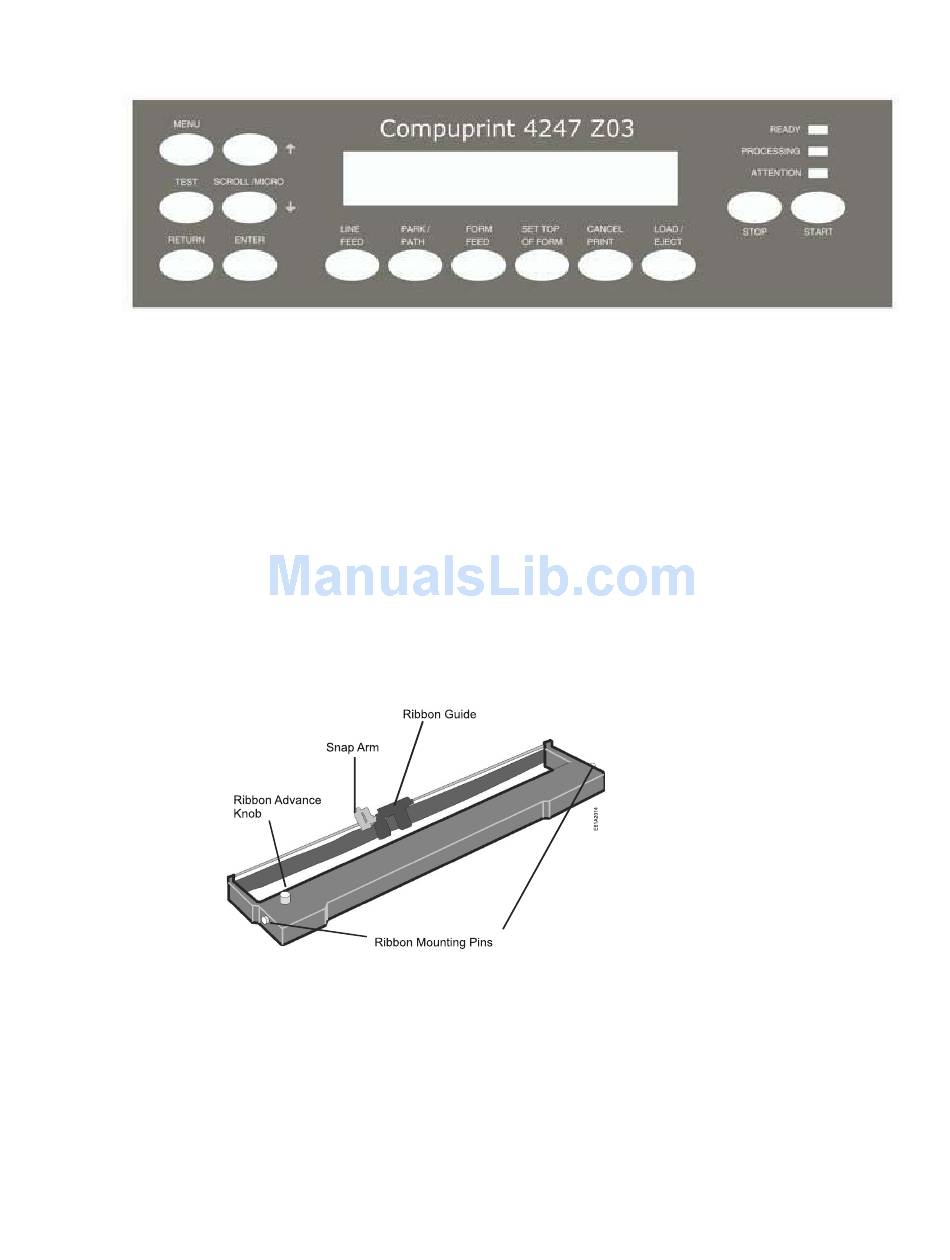

Figure 14. Printer Operator Panel
1. Remove the protective film from the printer operator panel display.
2. Remove the paper backing from the back of the overlay.
3. Carefully align the overlay ensuring free movement of the operator panel keys.
4. Press the overlay in place starting at the bottom , and continue working

Installing the ribbon cartridge

It is recommended that you use an approved ribbon cartridge. To install the ribbon
cartridge, follow these steps:
Figure 15. Ribbon cartridge
12
User's Guide
upwards until the overlay is pressed into place.
1. Remove the ribbon cartridge from the package. Locate the ribbon guide, snap
arm, ribbon advance knob, and the ribbon mounting pins.
2. Turn the ribbon advance knob in the direction of the arrow to take up any
slack in the ribbon. If the ribbon does not move, contact your place of ribbon
purchase to replace the ribbon cartridge.
3. Open the upper printer cover using the handles on the front side of the cover.
4. Slide the print head to the center of the printer.
