Setting up the 4247 Model Z03 Printer

Choosing a suitable location

Consider the following:
v For pluggable equipment, the socket-outlet shall be installed near the equipment
v The distance between the printer and the host computer must not exceed the
v Your printer should not be exposed to direct sunlight, extreme heat, cold, dust
v Ensure that sufficient clearances exist on all sides for operation and servicing.

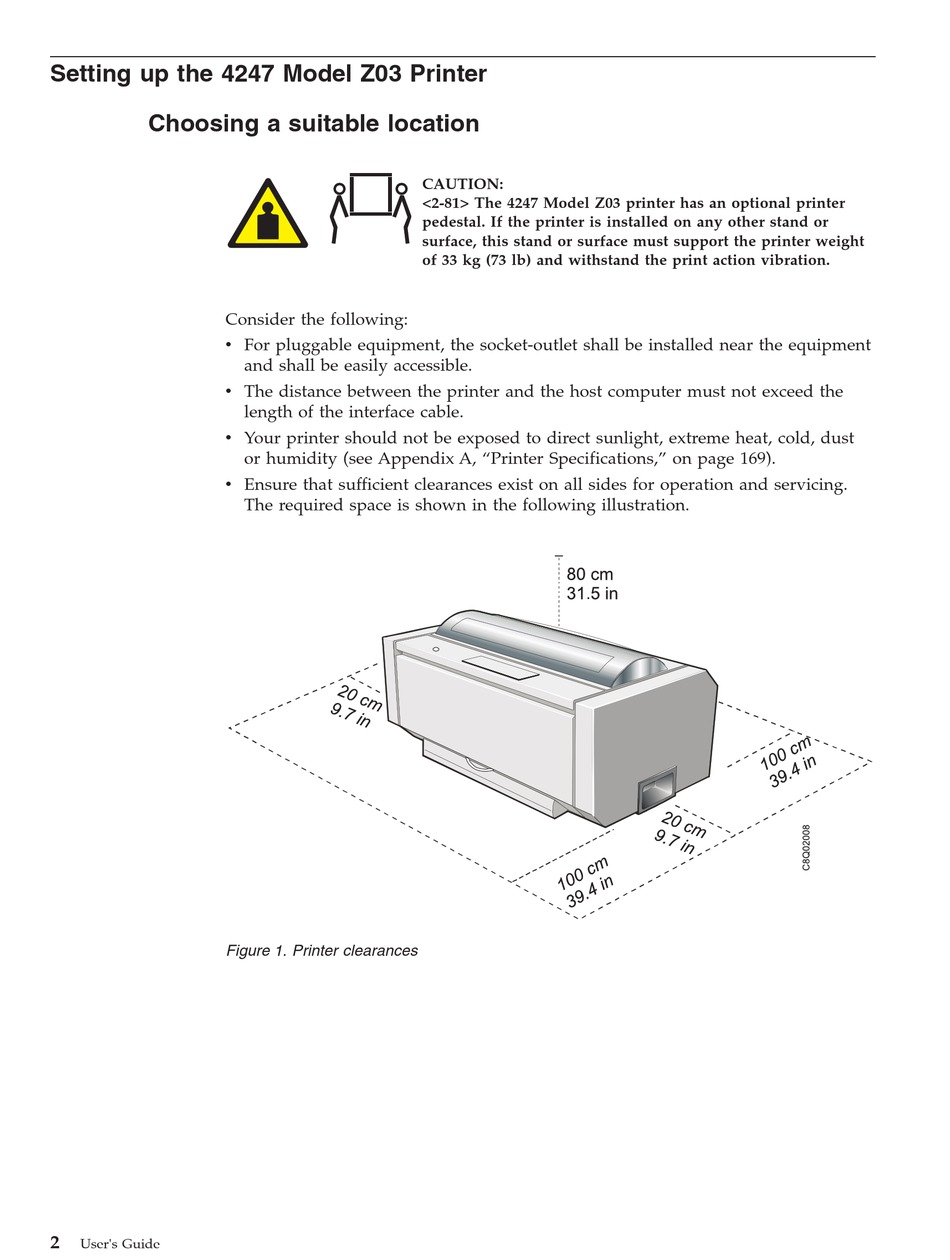

Figure 1. Printer clearances
2
User's Guide
CAUTION:
<2-81> The 4247 Model Z03 printer has an optional printer
pedestal. If the printer is installed on any other stand or
surface, this stand or surface must support the printer weight
of 33 kg (73 lb) and withstand the print action vibration.
and shall be easily accessible.
length of the interface cable.
or humidity (see Appendix A, "Printer Specifications," on page 169).
The required space is shown in the following illustration.
