Removing the Shipment Locks

Open all the printer covers and make sure that you remove all the shipment locks
from the printer.

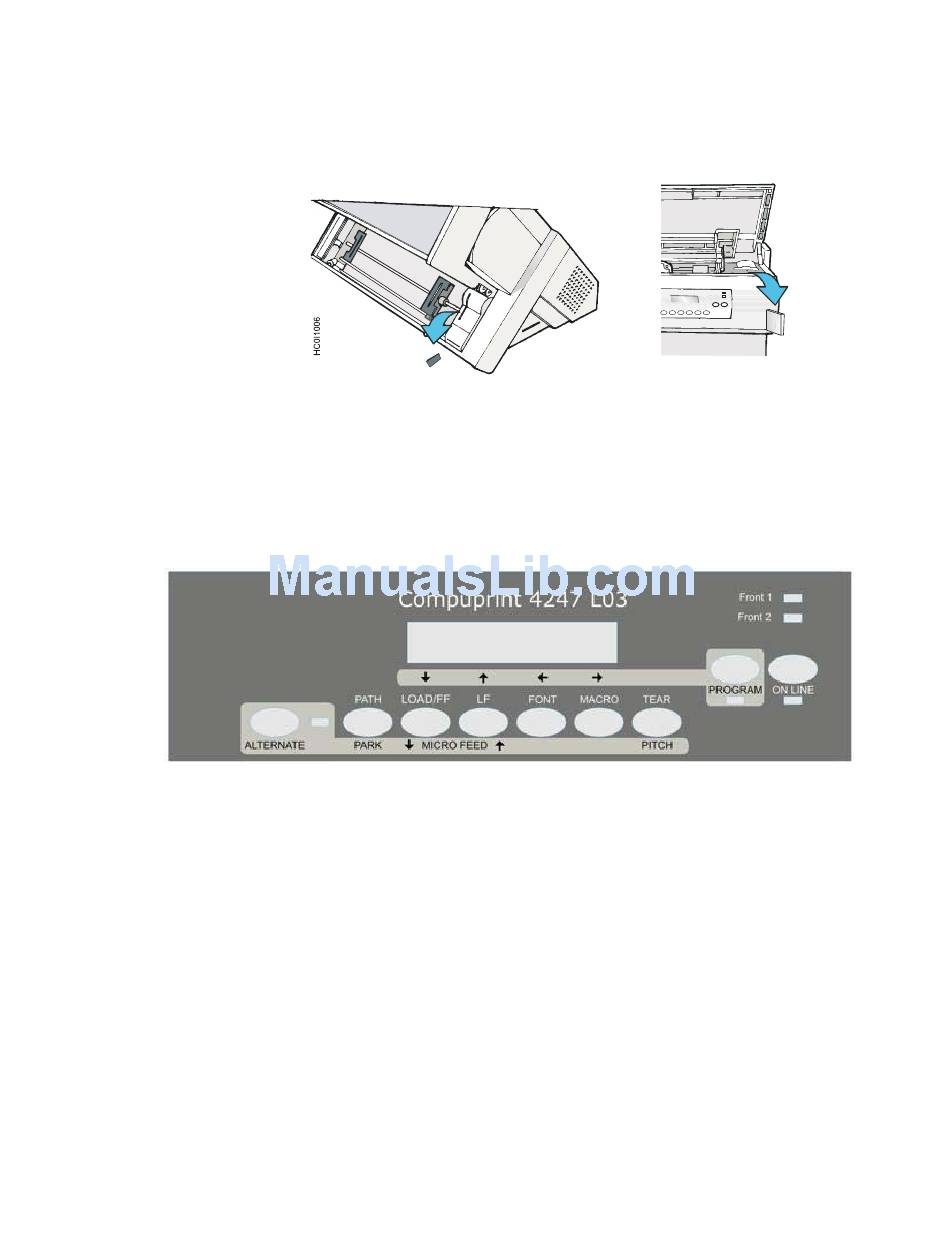

Figure 4. Printer showing location of the Shipment Locks
The following sections describe how to install the Operator Panel Overlay, the
ribbon cartridge, and the Controller Board.

Installing the operator panel overlay

Figure 5. Operator Panel
1. Remove the paper backing from the back of the overlay.
2. Carefully align the overlay ensuring free movement of the operator panel keys.
3. Press the overlay in place starting at the bottom , and continue working
4
Quick Setup Guide
upwards until the overlay is pressed into place.
