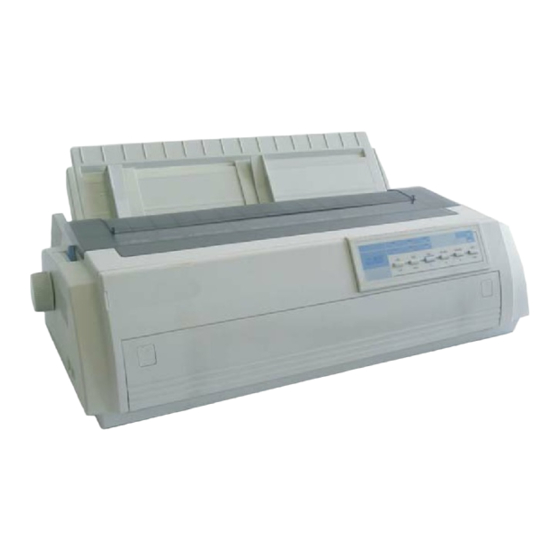

Compuprint 3056 Programmer's Manual
  1. Manuals
  2. Brands
  3. Compuprint Manuals
  4. Printer
  5. 3056
  6. Programmer's manual

Compuprint 3056 Programmer's Manual

Compuprint 3056: user guide
Hide thumbs Also See for 3056:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual, Installation Manual
Compuprint 30X6
Programmer Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3056 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Compuprint 3056

Summary of Contents for Compuprint 3056

  • Page 1 Compuprint 30X6 Programmer Manual...

  • Page 2: Table Of Contents

    Commands...3 1．Index for ESC/PK...3 2．Command interpretation for ESC/PK ...4 3．Other Command Sets...16 AR Command Set ...16 OKI Command Set ...17 Interfaces ...19 1. The Parallel Interface...19 Signals Description...19 Operating Phases ...20 Parallel Interface Signals ...20 Interface Timing...23 2. The Serial Interface ...23 Serial Interface Signals...24 3.

  • Page 3: Commands

    ． ． Command ESC ( C Set page length in defined unit Set unit ESC ( U Set page length in lines ESC C ESC C NUL Set page length in inches ESC N Set bottom margin ESC O Cancel bottom margin ESC Q Set right margin ESC l...

  • Page 4: Command Interpretation For Esc/Pk

    Parameter range = 1, n m = 10, 20, 30, 40, 50, 60 Function Sets the unit to m/3600 inch. The printer uses this unit when moving the print position, ESC C Set page length in lines Format  2 56) + m...
  • Page 5 ASCII ESC C n 1B 43 n Decimal 27 67 n Parameter range 1  n  1 27 0 < n  ( current line spacing)  2 2 inches Function Sets the page length to n lines in the current line spacing ESC C NUL Set page length in inches Format...

  • Page 6: Ff Form Feed

    Parameter range 1  n  2 55 (left margin) < (current pitch)  n  ( printable area width) Function Sets the right margin to n columns in the current character pitch, as measured from the leftmost printable column ESC l Set left margin Format...
  • Page 7 ASCII ESC J n 1B 4A n Decimal 27 74 n Parameter range 0  n  2 55 Function Advances the vertical print position n/180 inch Tab horizontally Format ASCII Decimal 9 Function Moves the horizontal print position to the next tab to the right of the current print position Tab vertically Format ASCII...
  • Page 8 ASCII ESC 2 1B 32 Decimal 27 50 Function Sets the line spacing to 1/6 inch ESC 3 Set n/180-inch line spacing Format ASCII ESC 3 n 1B 33 n Decimal 27 51 n Parameter range 0  n  2 55 Function Sets the line spacing to n/180 inch ESC +...

  • Page 9: Select Character Table

    > n (k-1) Function Sets horizontal tab positions (in the current character pitch) at the columns specified by n1 to nk, as measured from the left-margin position ESC B Set vertical tabs Format ASCII ESC B n . . . n 1B 42 n .
  • Page 10 0  n  1 3 Function Selects the set of characters printed for specific character codes, as listed below: n = 0 USA 1 France 2 Germany 3 United Kingdom 4 Denmark I 5 Sweden 6 Italy 7 Spain I 8 Japan (English) 9 Norway 10 Denmark II...
  • Page 11 1B 4D Decimal 27 77 Function Selects 12-cpi character pitch ESC g Select 15-cpi Format ASCII ESC g 1B 67 Decimal 27 103 Function Selects 15-cpi character printing ESC SP Set character space Format ASCII ESC SP n 1B 20 n Decimal 27 32 n Parameter range 0 ...
  • Page 12 Decimal 27 71 Function Prints each dot twice, with the second slightly below the first, creating bolder characters ESC H Cancel double-strike printing Format ASCII ESC H 1B 48 Decimal 27 72 Function Cancels double-strike printing selected with the ESC G command ESC q Select character style Format...
  • Page 13 Cancel double-width printing (one line) Format ASCII Decimal 20 Parameter range No parameters Function Cancels double-width printing selected by the SO or ESC SO commands ESC W Turn double-width printing on/off Format ASCII ESC W n 1B 57 n Decimal 27 87 n Parameter range n = 0, 1 Function...
  • Page 14 Initialize printer Format ASCII ESC @ 1B 40 Decimal 27 64 Function Resets the printer to its default settings Cancel line Format ASCII Decimal 24 Function Clears all printable characters and bit-image graphics on the current line Delete last character in buffer...
  • Page 15 Parameter range n = 0, 1 Function Turns on/off printing of a line below all characters and spaces following this command: n = 1 Turns underline on 0 Turns underline off ESC E Select bold font Format ASCII ESC E 1B 45 Decimal 27 69 Function...

  • Page 16: Other Command Sets

    ． ． Command ESC J n ESC 0 ESC + n ESC 2 ESC 3 n ESC A n ESC B n1 n2 …n k ESC C NUL n ESC C n ESC D n1 n2 … n k NUL ESC l n ESC N n ESC O...

  • Page 17: Oki Command Set

    Select an international character set Select character table Select/deselect user-defined set Select bit image Cancel line Delete last character in buffer Backspace Initialize printer Turn unidirectional mode on/off Set the left/right margin Set forward feeding Set reverse feeding Function Set on-line status...
  • Page 18 ESC ) n1 n2 ESC L ESC N ESC H ESC B ESC E ESC % 1 n1 n2 ESC % 2 n1 n2 ESC D ESC I ESC X ESC Y ESC U ESC R ESC < ESC > ESC [ ESC ] ESC i...

  • Page 19: Interfaces

    This appendix provides technical information for the parallel and serial interfaces The parallel interface of this printer fully supports the Centronics protocol plus the specific features requested by the EPSON and IBM printer connection in monodirectional mode and the Compatibility and Nibbles modes in bidirectional mode, plus the negotiation phases and the device identifier (as IEEE P1284).

  • Page 20: Operating Phases

    PRINTER Negative pulsed signal indicating that the printer has received data and is ready to accept the next set of data. Also sent when the printer is switched from off-line to on-line and at the end of the initialization time. The BUSY line is always active.
  • Page 21 Active low level signal. Indicates, that the printer is initializing. The BUSY signal is forced high. When low, this signal indicates that the printer is off-line, there is an off-line request from the operator panel, or the printer is in an error state .
  • Page 22 The pins 19 to 30 of the printer are connected to the pins 18 to 25 of the parallel port of the host. The pins 31, 32 and 36 of the printer are connected respectively to the pins 16, 15 and 17 of the parallel port of the host.

  • Page 23: Interface Timing

    Mode Centronics: Centronics mode ACK-WHILE-BUSY as BUSY-ACK relationship. This printer provides the RS-232/C serial interfaces. The interface mode is selected via EDS menu. • Transmission Type Data is sent and received in start/stop (asynchronous) transmission. • Character Format Each character is transmitted in the following format:...

  • Page 24: Serial Interface Signals

    The parity bit, when present, follows the data bits. The start bit is a logical "0" and the stop bit is a logical "1". The start and stop bits are used as character framing bits. • Printer Connector Male DB9 .

  • Page 25: Network Interface

    Cable connector: 8pin, RJ45 The following table lists the network interface signals used:...
