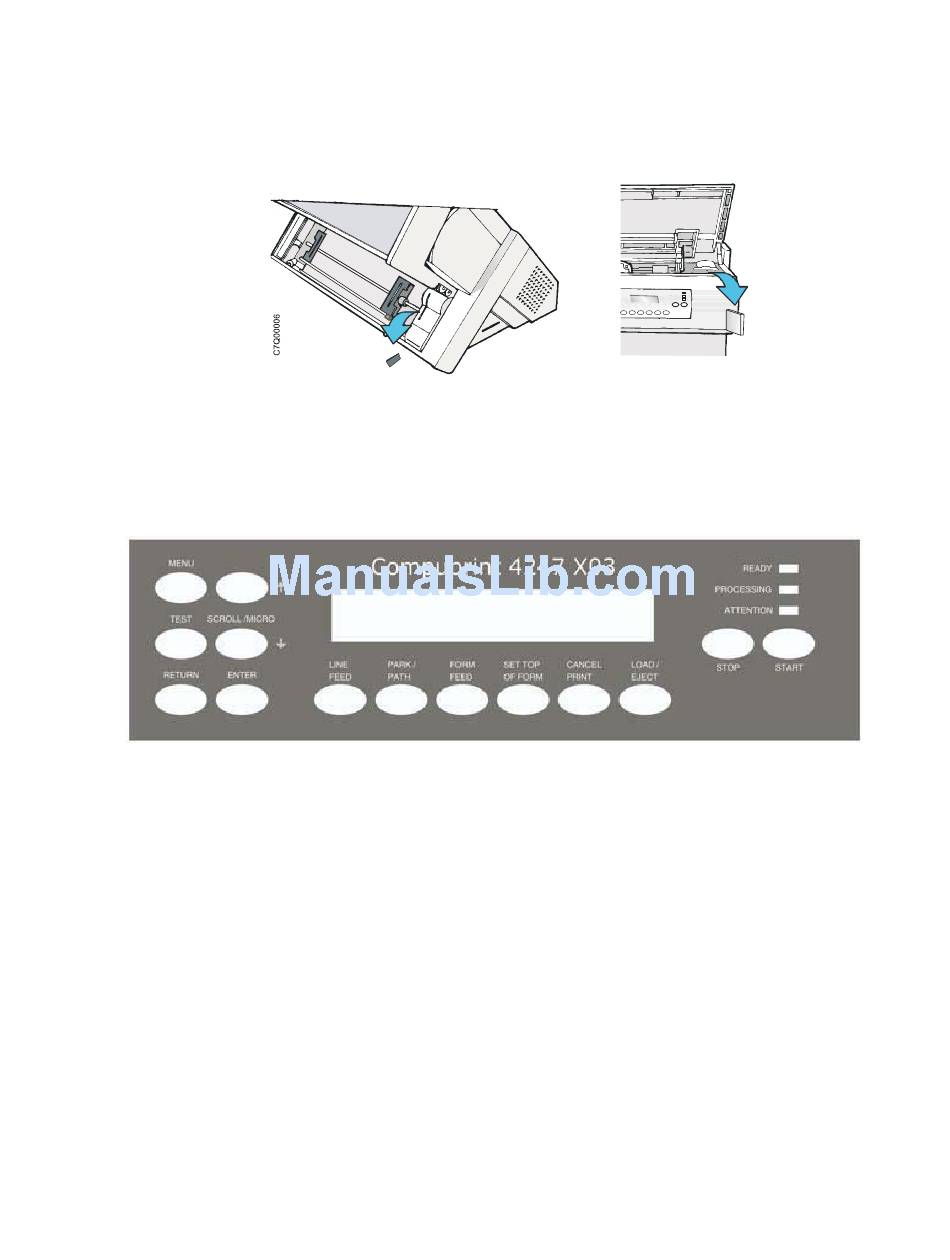

Removing the Shipment Locks

Open all the printer covers and make sure that you remove all the shipment locks

from the printer.

The following sections describe how to install the Operator Panel Overlay, the

ribbon cartridge, and the Controller Board.

1. Remove the protective film from the printer operator panel display.

2. Remove the paper backing from the back of the overlay.

3. Carefully align the overlay ensuring free movement of the operator panel keys.

4. Press the overlay in place starting at the bottom , and continue working

upwards until the overlay is pressed into place.

Setting up your printer
