Removing the optional second tractor

If you need to remove the second optional push tractor, turn the printer off.
1. Disconnect the connector cable and press on the push buttons on either side to

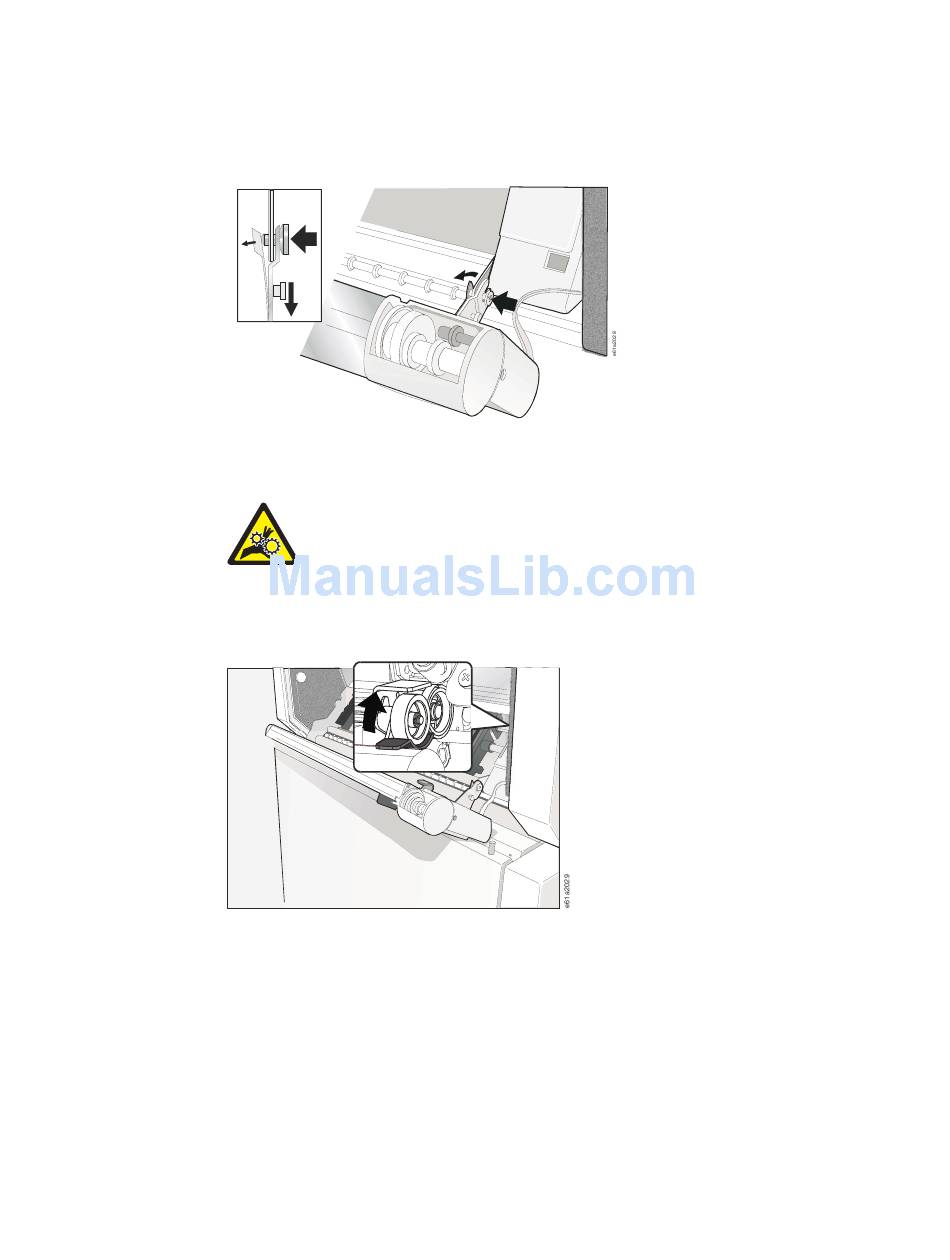

Figure 35. Disengaging the tractor
2. Close the tractor gear protection cover.
Figure 36. Closing the tractor gear protection cover
24
User's Guide
disengage the tractor. Then pull the tractor off.
CAUTION:
<2-53> If the second tractor unit is not installed, make sure the gear protector
cover is closed. Do not touch inside the printer or insert any object into the
gears.
