Maintenance

Removing the ribbon cartridge

Attention: Damage to the printer can occur if you do not use an approved ribbon
(part number 57P1743) especially designed for the 4247 Model Z03 printer.
To remove an existing ribbon cartridge, follow these steps:
1. Open the printer top cover.
2. Slide the printhead to the center of the printer.
3. Slide the ribbon guide out of the printhead.
4. Free the shifter holder by pushing the tab towards the rear and pulling the

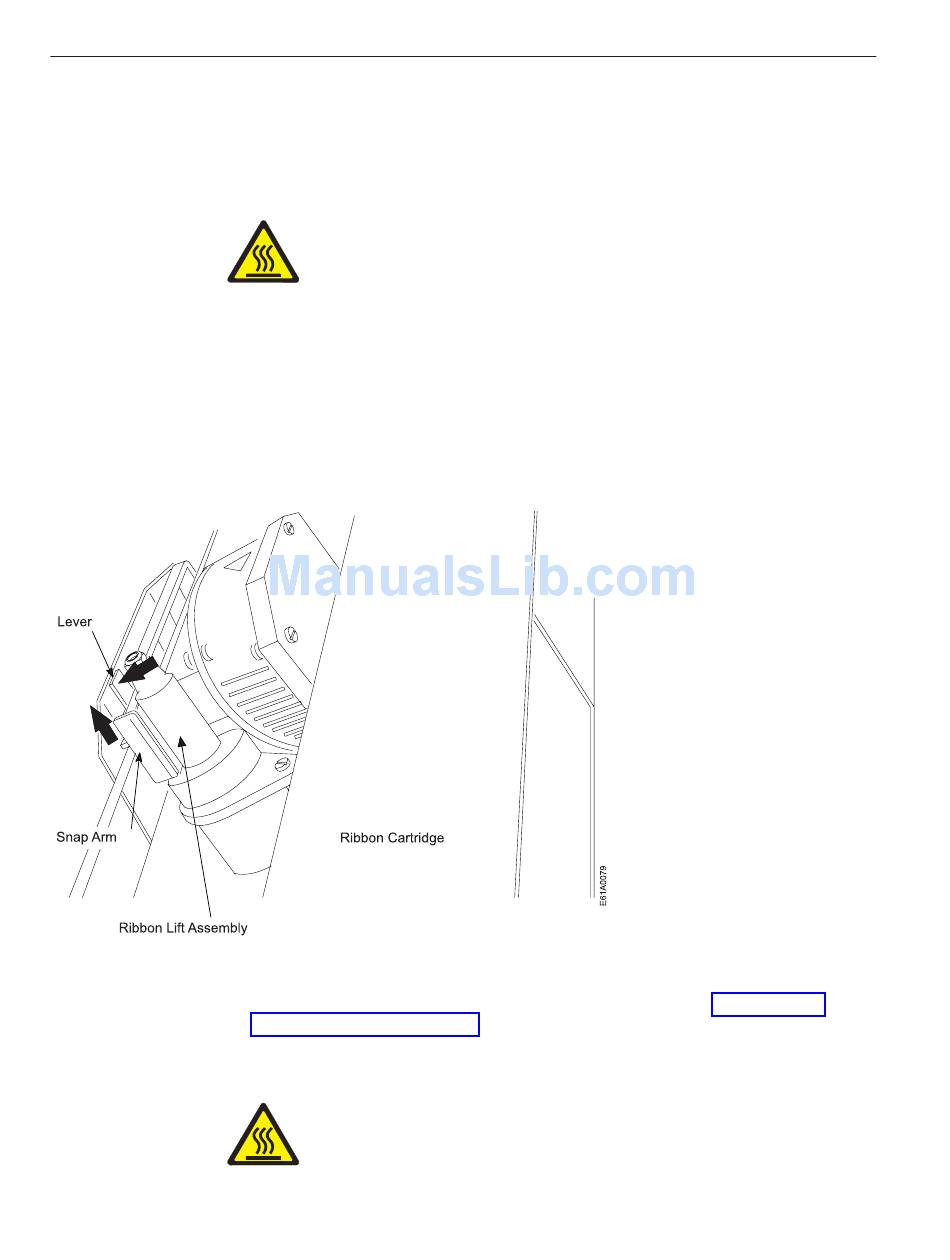

Figure 42. Freeing the shifter holder
5. Now you are ready to insert the new ribbon cartridge (see "Installing the

Cleaning the Printer

152
User's Guide
CAUTION:
<2-25> High temperature; switch off the printer and allow at least 20 minutes
for parts in this area to cool before handling.
shifter holder up.
ribbon cartridge" on page 12).
CAUTION:
<2-25> High temperature; switch off the printer and allow at least 20 minutes
for parts in this area to cool before handling.
