Removing the shipping locks

1. Open the tractor area cover and make sure that you remove all shipping locks,
including the 2 knurled shipping lock screws. Store the locks with the packing
material.

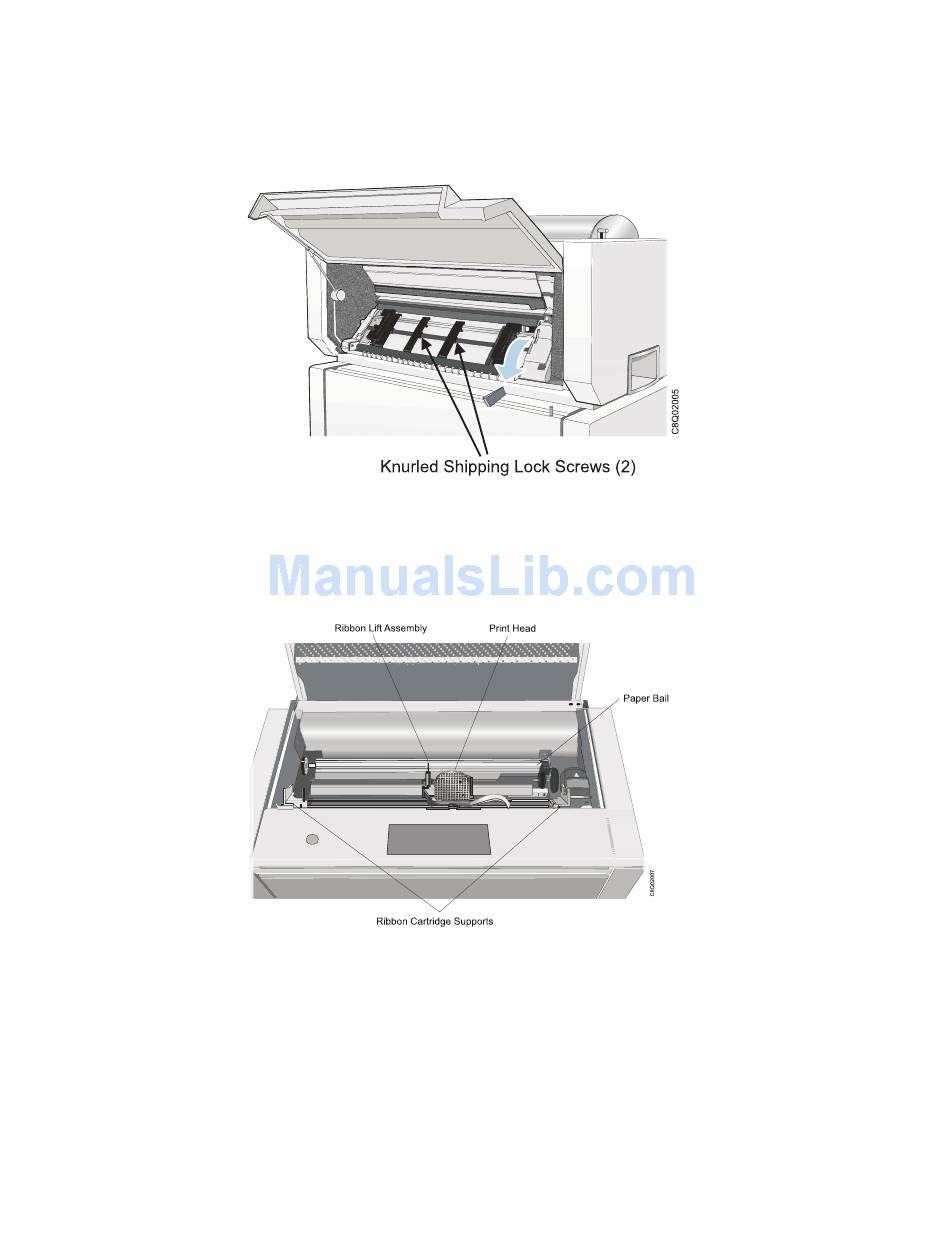

Figure 9. Opening the tractor area cover and removing the shipping locks
2. Open the upper printer cover. If there is a wire tie around the printhead,
remove it.
Figure 10. Opening the upper printer cover

Installing the Controller Board

The 4247 printer arrived with the Controller Board that you ordered.
You must install the Controller Board (received with the printer) into the proper
slot in the back of the printer before it can be used.

Handling the Controller Board

Attention: Do not remove the Controller Board from the protective package until
instructed to do so. Static electricity, though harmless to you, can damage sensitive
Controller Board components. Use the information in this section to avoid
damaging a Controller Board.
Chapter 1. Getting Started
9
