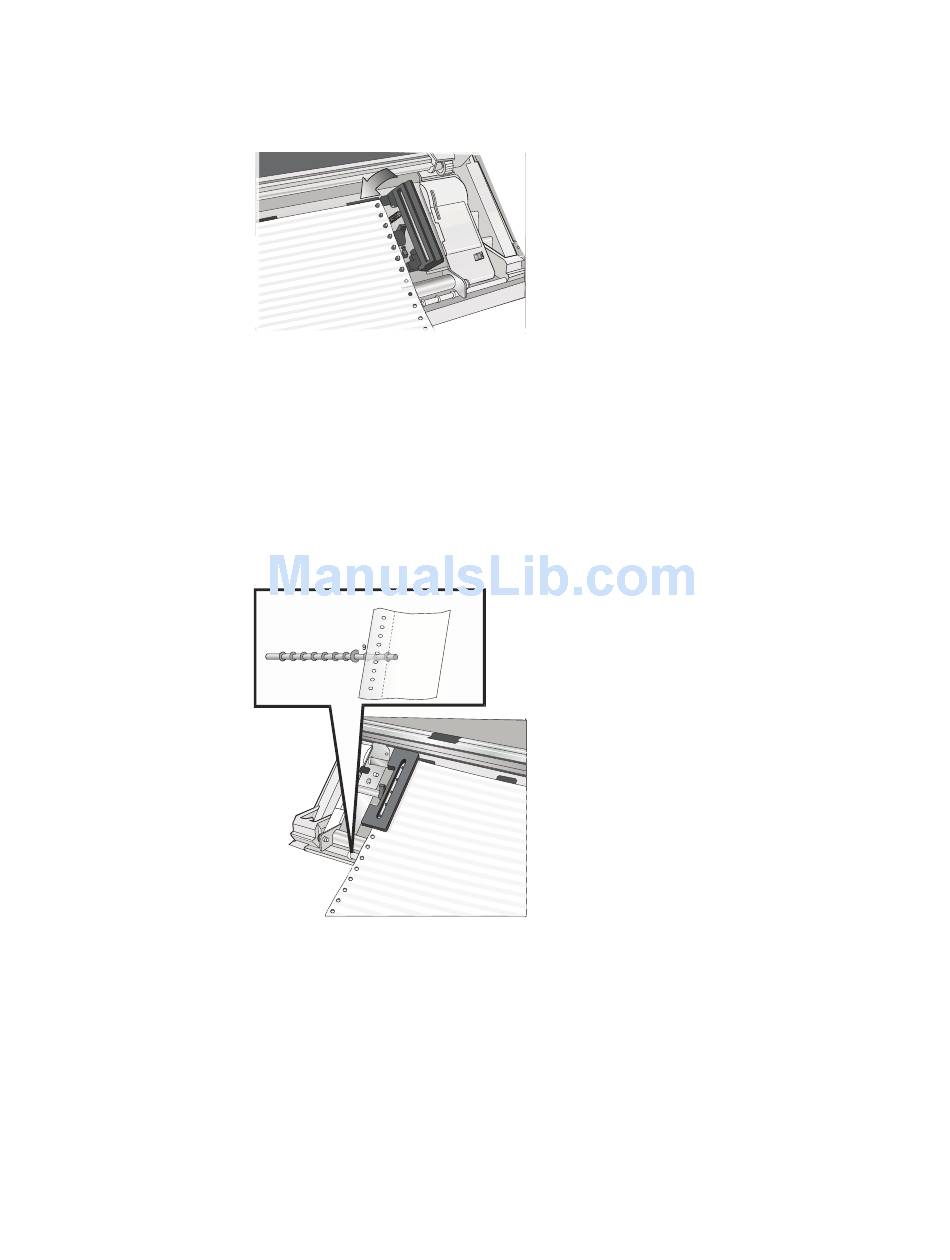

Figure 21. Inserting the paper on the right sprocket pins.
Figure 22. Matching the left sprocket for the first printing position.
18
User's Guide
6. Insert the paper on the right sprocket pins.
7. Match the left sprocket for the first printing position, that is the left margin
th
must match the 9 mark on the printer cabinet.
Note: Aligning the left-hand edge of the paper past the 22
printer cabinet will cause the paper to be misaligned with the Paper
Load Sensor resulting in a '001 End of Forms' error.
9
1 2 3 4 5 6 7 8
HC0I0023
HC0I0022
nd
spacer on the
