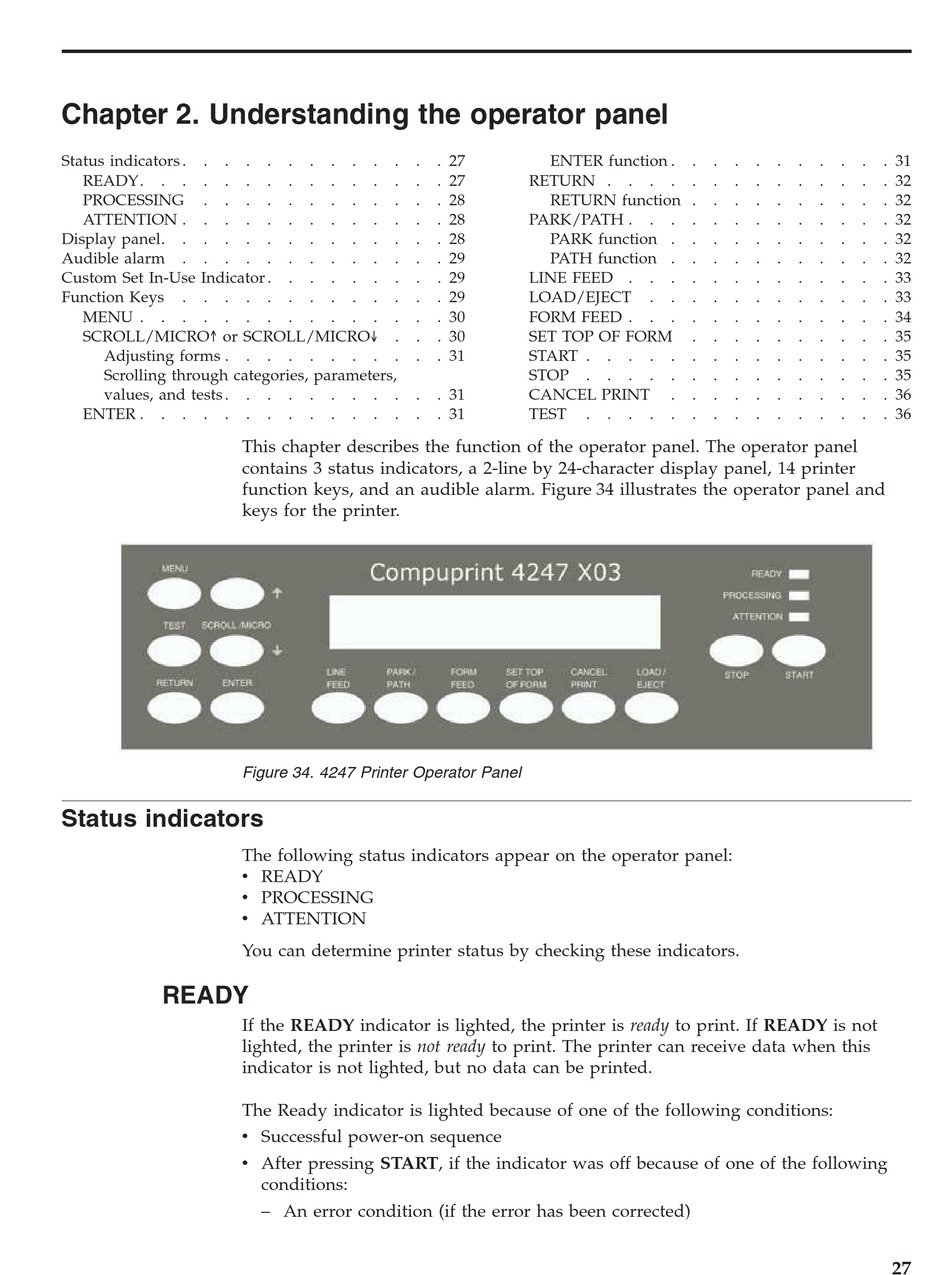

Chapter 2. Understanding the operator panel
Status indicators .
.
.
READY.
.
.
.
.
PROCESSING
.
.
ATTENTION .
.
.
Display panel.
.
.
.
Audible alarm
.
.
.
Custom Set In-Use Indicator .
Function Keys
.
.
.
MENU .
.
.
.
.
SCROLL/MICRO↑ or SCROLL/MICRO↓
Adjusting forms .
Scrolling through categories, parameters,
values, and tests .
ENTER .
.
.
.
.
Status indicators
READY
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
This chapter describes the function of the operator panel. The operator panel
contains 3 status indicators, a 2-line by 24-character display panel, 14 printer
function keys, and an audible alarm. Figure 34 illustrates the operator panel and
keys for the printer.
Figure 34. 4247 Printer Operator Panel
The following status indicators appear on the operator panel:
v READY
v PROCESSING
v ATTENTION
You can determine printer status by checking these indicators.
If the READY indicator is lighted, the printer is ready to print. If READY is not
lighted, the printer is not ready to print. The printer can receive data when this
indicator is not lighted, but no data can be printed.
The Ready indicator is lighted because of one of the following conditions:
v Successful power-on sequence
v After pressing START, if the indicator was off because of one of the following
conditions:
– An error condition (if the error has been corrected)
. 27
ENTER function .
. 27
RETURN .
. 28
RETURN function .
. 28
PARK/PATH .
. 28
PARK function .
. 29
PATH function .
. 29
LINE FEED .
. 29
LOAD/EJECT
. 30
FORM FEED .
. 30
SET TOP OF FORM
. 31
START .
.
STOP
.
.
. 31
CANCEL PRINT
. 31
TEST
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 31
.
.
.
. 32
.
.
.
. 32
.
.
.
. 32
.
.
.
. 32
.
.
.
. 32
.
.
.
. 33
.
.
.
. 33
.
.
.
. 34
.
.
.
. 35
.
.
.
. 35
.
.
.
. 35
.
.
.
. 36
.
.
.
. 36
27
