6. Rotate the second tractor into the closed operating position.

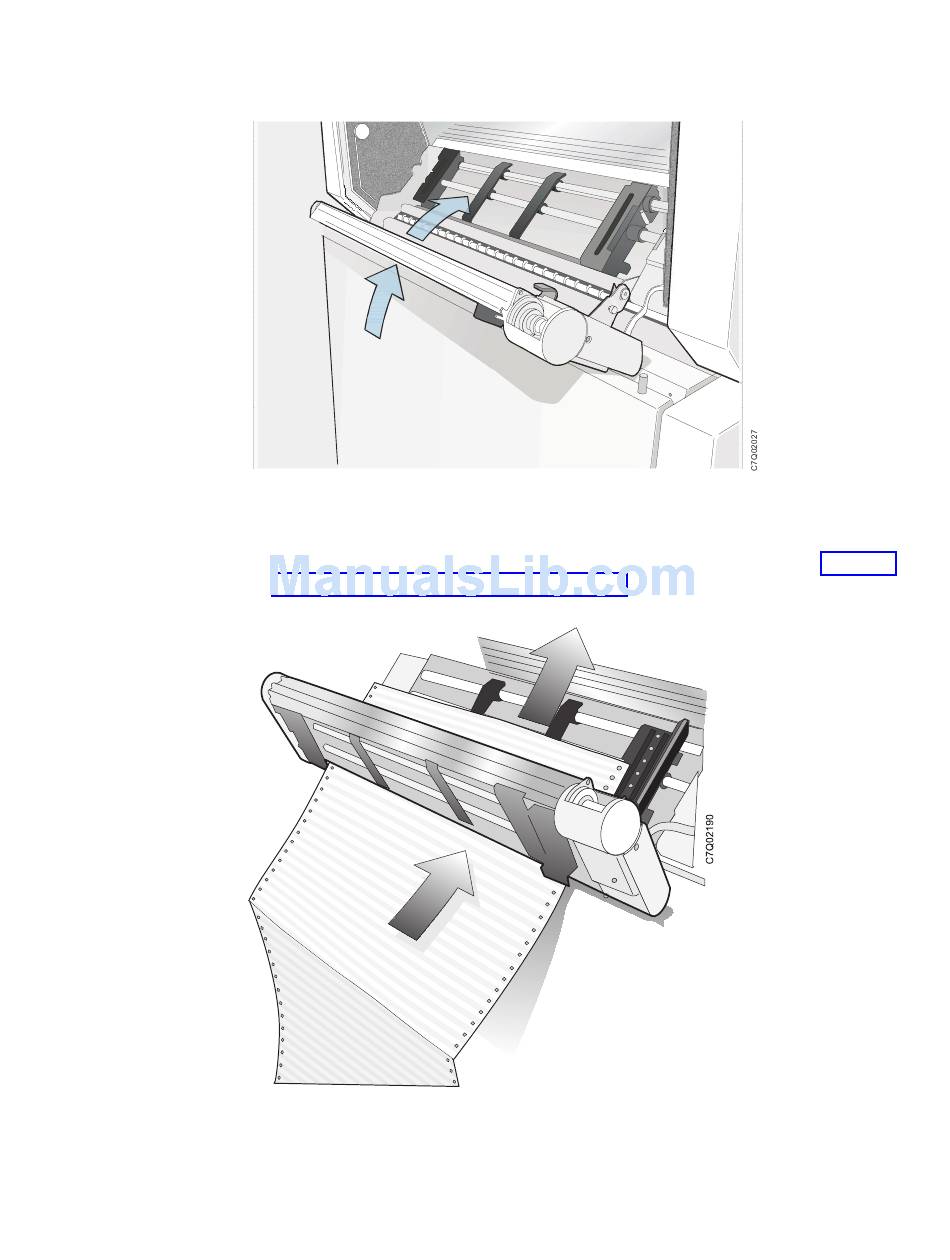

Figure 30. Second tractor in the closed position.
7. To load paper onto the first tractor when the second tractor is installed, rotate
the second tractor out and insert paper between the two tractors. (See "Loading
forms in the Front Push Tractors" on page 16 for paper loading procedures.)
Figure 31. Paper path direction
Chapter 1. Getting started
23
