Loading forms in the Front Push Tractors

This sequence describes how to load the fanfold paper with the push tractor
(default).

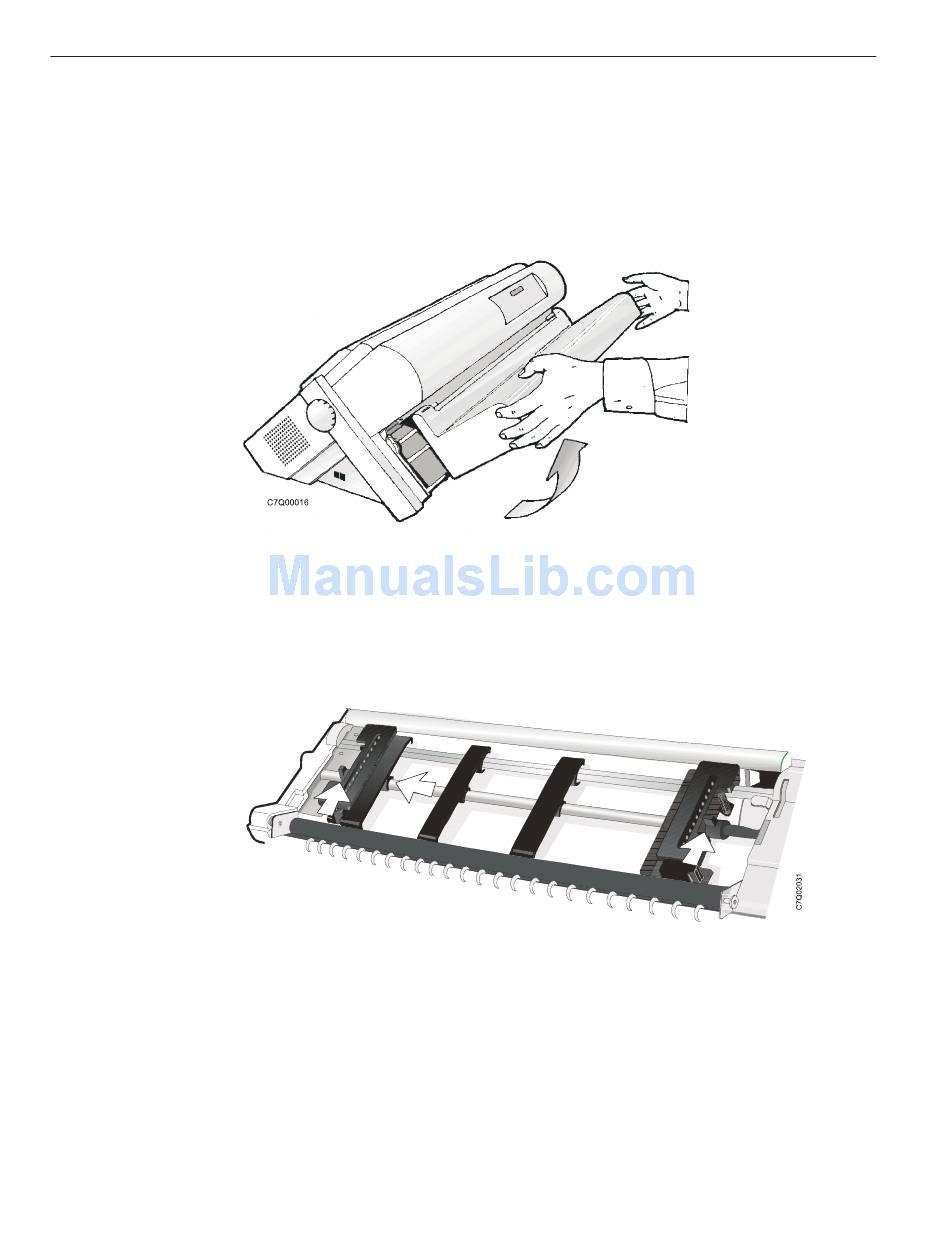

Figure 17. Opening the Push tractors cover
Figure 18. Unlocking the sprockets of the Front1 push tractor
16
User's Guide
1. Turn the printer on.
2. Open the Push tractors cover turning it upwards and lay it on the top of the
printer.
3. Unlock the tractors by moving the sprocket levers to the up position. Slide the
left tractor to the left.
