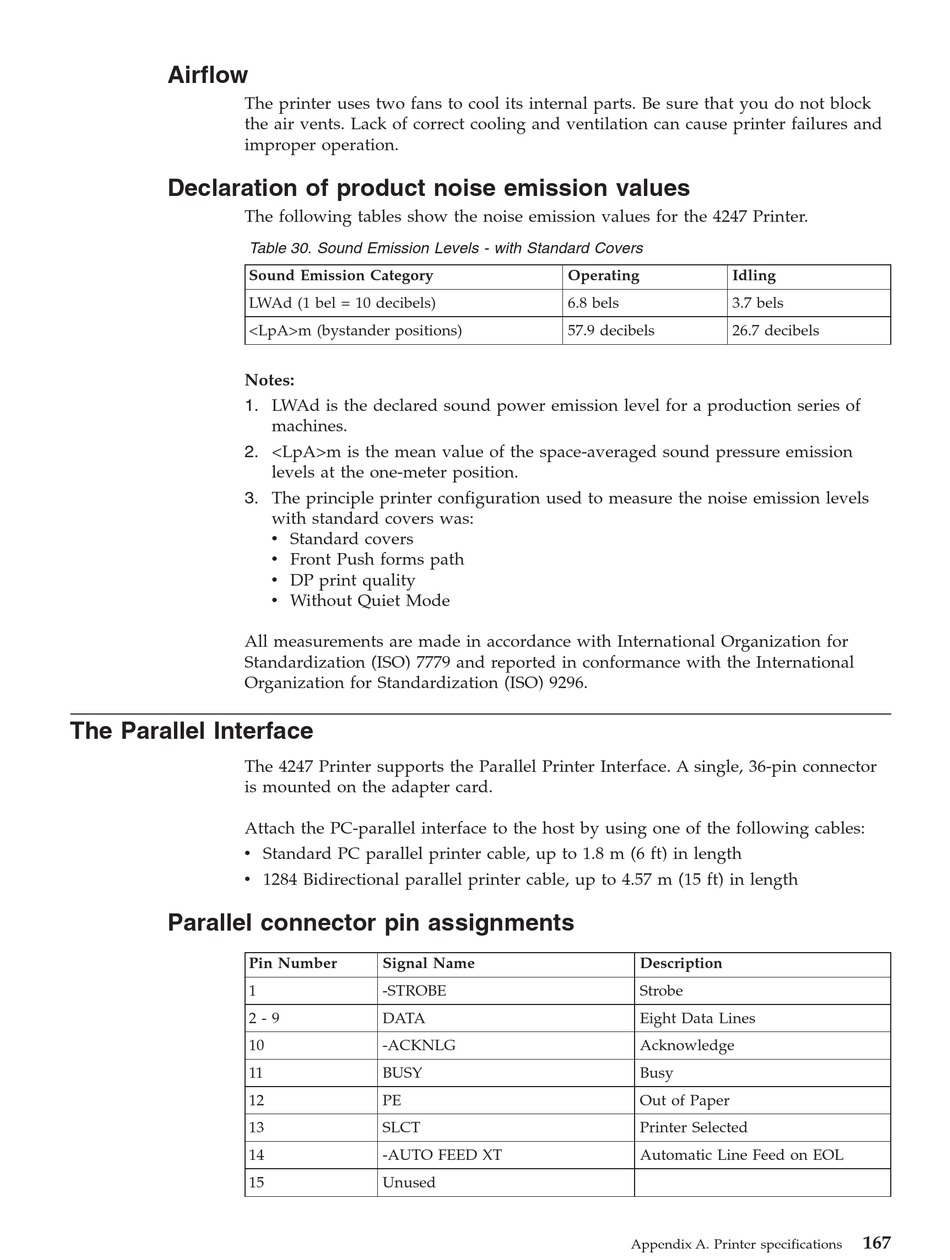

Airflow

The printer uses two fans to cool its internal parts. Be sure that you do not block
the air vents. Lack of correct cooling and ventilation can cause printer failures and
improper operation.

Declaration of product noise emission values

The following tables show the noise emission values for the 4247 Printer.
Notes:
1. LWAd is the declared sound power emission level for a production series of
2. <LpA>m is the mean value of the space-averaged sound pressure emission
3. The principle printer configuration used to measure the noise emission levels
All measurements are made in accordance with International Organization for
Standardization (ISO) 7779 and reported in conformance with the International
Organization for Standardization (ISO) 9296.

The Parallel Interface

The 4247 Printer supports the Parallel Printer Interface. A single, 36-pin connector
is mounted on the adapter card.
Attach the PC-parallel interface to the host by using one of the following cables:
v Standard PC parallel printer cable, up to 1.8 m (6 ft) in length
v 1284 Bidirectional parallel printer cable, up to 4.57 m (15 ft) in length

Parallel connector pin assignments

Table 30. Sound Emission Levels - with Standard Covers
Sound Emission Category
LWAd (1 bel = 10 decibels)
<LpA>m (bystander positions)
machines.
levels at the one-meter position.
with standard covers was:
v Standard covers
v Front Push forms path
v DP print quality
v Without Quiet Mode
Pin Number Signal Name
1 -STROBE
2 - 9 DATA
10 -ACKNLG
11 BUSY
12 PE
13 SLCT
14 -AUTO FEED XT
15 Unused
Operating Idling
6.8 bels 3.7 bels
57.9 decibels 26.7 decibels
Description
Strobe
Eight Data Lines
Acknowledge
Busy
Out of Paper
Printer Selected
Automatic Line Feed on EOL
Appendix A. Printer specifications
167
