6. Position the ribbon guide over the printhead, holding it perpendicular to the
print head.

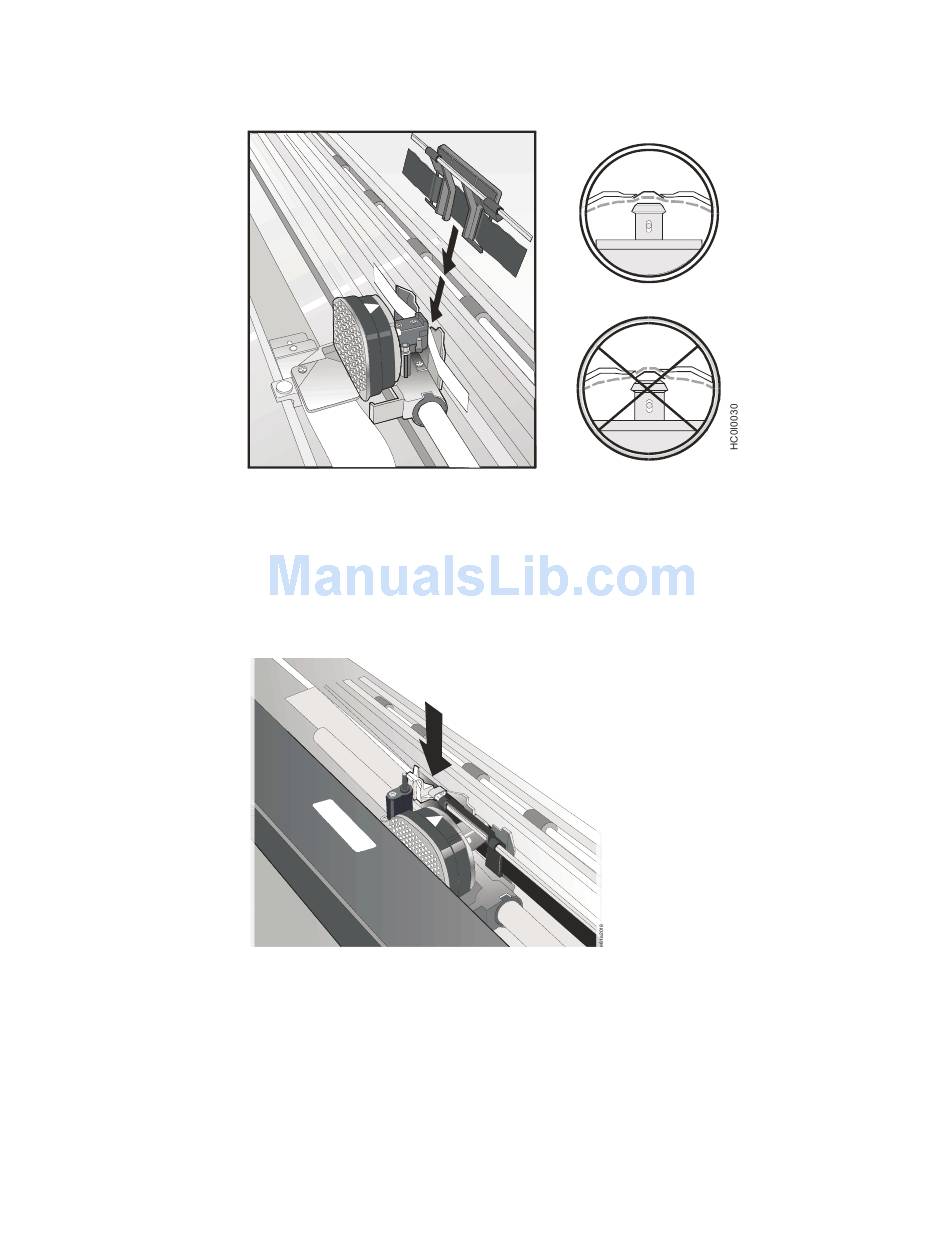

Figure 12. Print head and ribbon guide mask showing correct positioning of the ribbon.
7. Turn the ribbon advance knob to take up any slack in the ribbon.
8. Position the snap arm with the small lever up onto the ribbon lift assembly.
Push the snap arm down onto the ribbon lift assembly until it snaps into
place.
Figure 13. Positioning the snap arm.
