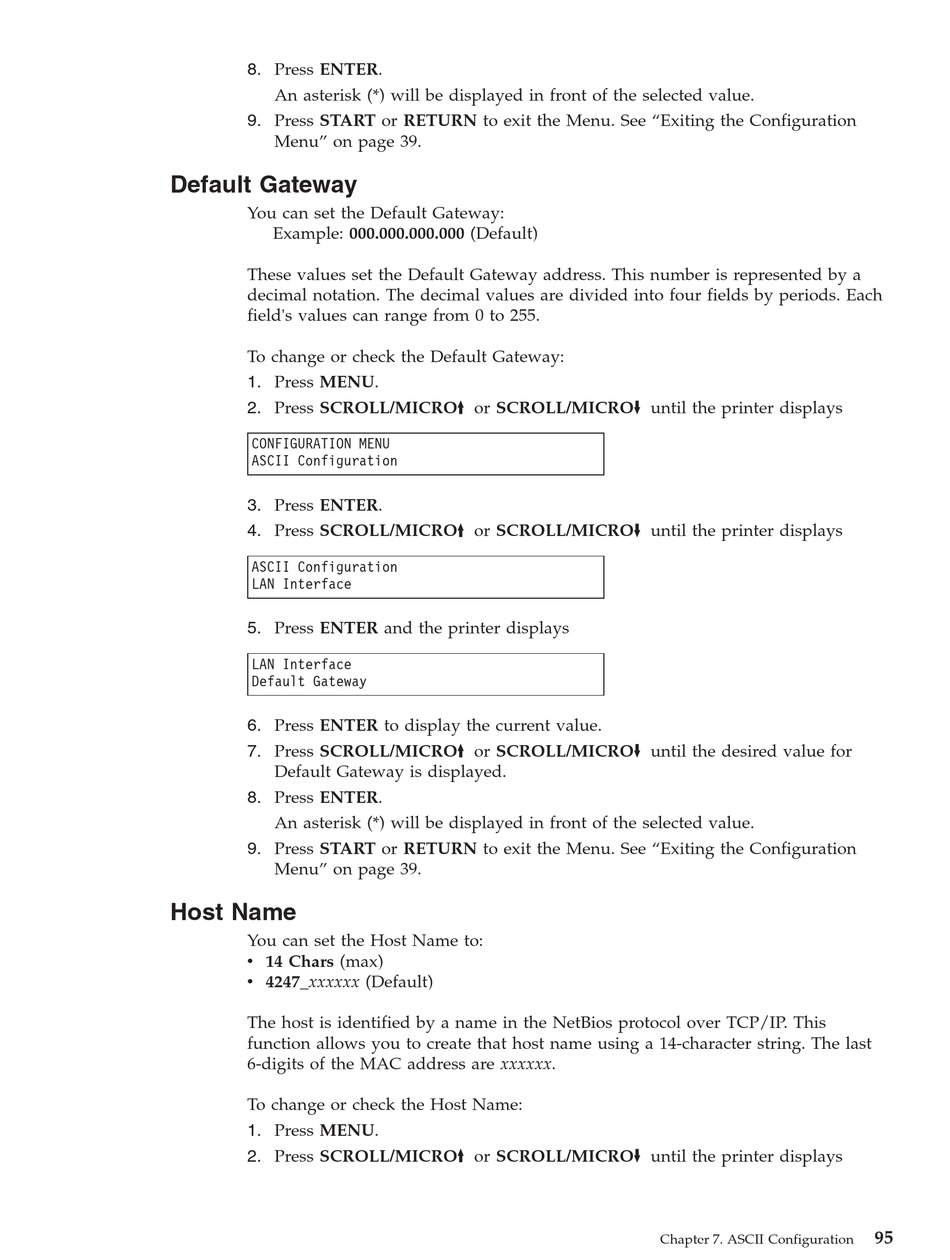

Default Gateway; Host Name - Compuprint X03 User Manual

8. Press ENTER.
An asterisk (*) will be displayed in front of the selected value.
9. Press START or RETURN to exit the Menu. See "Exiting the Configuration
Menu" on page 39.

Default Gateway

You can set the Default Gateway:
Example: 000.000.000.000 (Default)
These values set the Default Gateway address. This number is represented by a
decimal notation. The decimal values are divided into four fields by periods. Each
field's values can range from 0 to 255.
To change or check the Default Gateway:
1. Press MENU.
2. Press SCROLL/MICRO or SCROLL/MICRO until the printer displays
CONFIGURATION MENU
ASCII Configuration
3. Press ENTER.
4. Press SCROLL/MICRO or SCROLL/MICRO until the printer displays
ASCII Configuration
LAN Interface
5. Press ENTER and the printer displays
LAN Interface

Default Gateway

6. Press ENTER to display the current value.
7. Press SCROLL/MICRO or SCROLL/MICRO until the desired value for
Default Gateway is displayed.
8. Press ENTER.
An asterisk (*) will be displayed in front of the selected value.
9. Press START or RETURN to exit the Menu. See "Exiting the Configuration
Menu" on page 39.

Host Name

You can set the Host Name to:
v 14 Chars (max)
v 4247_xxxxxx (Default)
The host is identified by a name in the NetBios protocol over TCP/IP. This
function allows you to create that host name using a 14-character string. The last
6-digits of the MAC address are xxxxxx.
To change or check the Host Name:
1. Press MENU.
2. Press SCROLL/MICRO or SCROLL/MICRO until the printer displays
Chapter 7. ASCII Configuration
95
