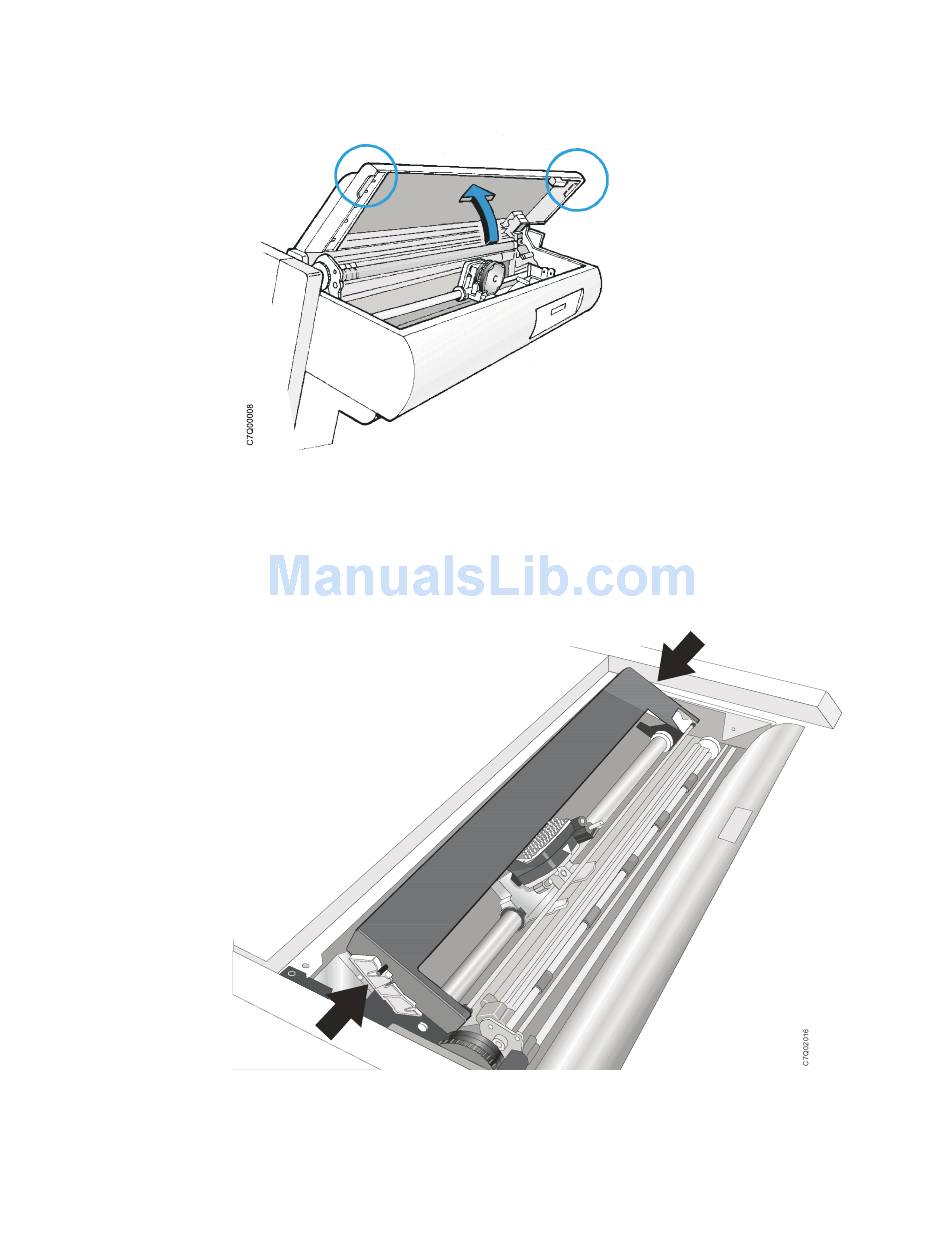

Figure 10. Opening the top cover
Figure 11. Aligning the cartridge pins.
10
User's Guide
3. Open the top cover using the small handles on either side of the top cover.
4. Slide the print head to the center of the printer.
5. Align the cartridge pins with the locking grooves on the left and right
cartridge supports.
