8
SCAN OPERATION

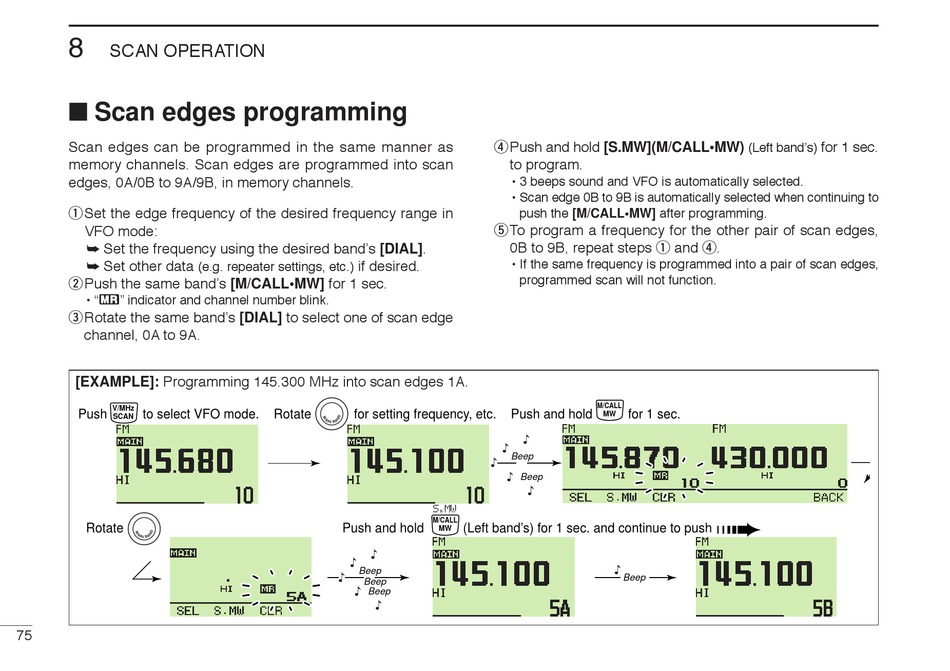

■ Scan edges programming

Scan edges can be programmed in the same manner as
memory channels. Scan edges are programmed into scan
edges, 0A/0B to 9A/9B, in memory channels.
qSet the edge frequency of the desired frequency range in
VFO mode:
➥ Set the frequency using the desired band's [DIAL].
➥ Set other data
w Push the same band's [M/CALL•MW] for 1 sec.
• "X" indicator and channel number blink.
eRotate the same band's [DIAL] to select one of scan edge
channel, 0A to 9A.
[EXAMPLE]: Programming 145.300 MHz into scan edges 1A.
V/MHz
Push to select VFO mode.
SCAN
Rotate
75
if desired.
(e.g. repeater settings, etc.)
Rotate for setting frequency, etc.
Push and hold
"
"
Beep
"
Beep
"
Beep
"
rPush and hold [S.MW](M/CALL•MW)
to program.
• 3 beeps sound and VFO is automatically selected.
• Scan edge 0B to 9B is automatically selected when continuing to
push the [M/CALL•MW] after programming.
tTo program a frequency for the other pair of scan edges,
0B to 9B, repeat steps q and r.
• If the same frequency is programmed into a pair of scan edges,
programmed scan will not function.
M/CALL
Push and hold
MW
"
"
Beep
"
"
Beep
"
S.MW
M/CALL
(Left band's) for 1 sec. and continue to push
MW
(Left band's)
for 1 sec.
➠
"
Beep
for 1 sec.
