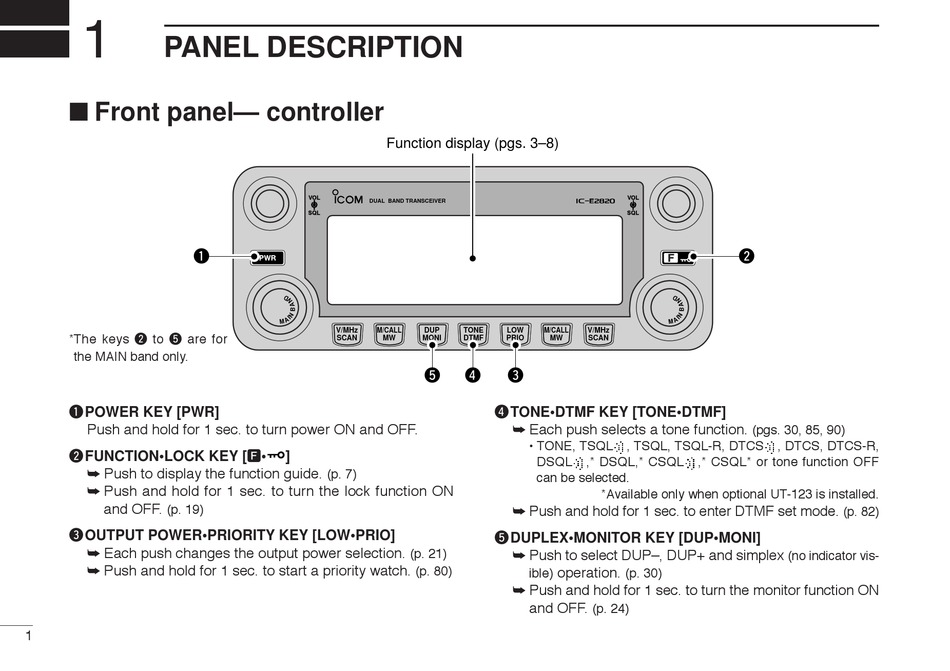

PANEL DESCRIPTION

■ Front panel— controller
q
*The keys w to t are for
the MAIN band only.
q POWER KEY [PWR]
Push and hold for 1 sec. to turn power ON and OFF.
w FUNCTION•LOCK KEY [F•
➥ Push to display the function guide.
➥ Push and hold for 1 sec. to turn the lock function ON
and OFF.
(p. 19)
e OUTPUT POWER•PRIORITY KEY [LOW•PRIO]
➥ Each push changes the output power selection.
➥ Push and hold for 1 sec. to start a priority watch.
1
Function display (pgs. 3–8)
DUAL BAND TRANSCEIVER
V/MHz M/CALL DUP TONE
SCAN MW MONI DTMF
t r
]
(p. 7)
(p. 21)
(p. 80)
iE2820
LOW M/CALL V/MHz
PRIO MW SCAN
e
r TONE•DTMF KEY [TONE•DTMF]
➥ Each push selects a tone function.
• TONE, TSQL , TSQL, TSQL-R, DTCS
DSQL ,* DSQL,* CSQL
can be selected.
*Available only when optional UT-123 is installed.
➥ Push and hold for 1 sec. to enter DTMF set mode.
t DUPLEX•MONITOR KEY [DUP•MONI]
➥ Push to select DUP–, DUP+ and simplex
operation.
ible) (p. 30)
➥ Push and hold for 1 sec. to turn the monitor function ON
and OFF.
(p. 24)
w
(pgs. 30, 85, 90)
, DTCS, DTCS-R,
,* CSQL* or tone function OFF
(p. 82)
(no indicator vis-
