Squelch Attenuator - Icom IC-E2820 Instruction Manual

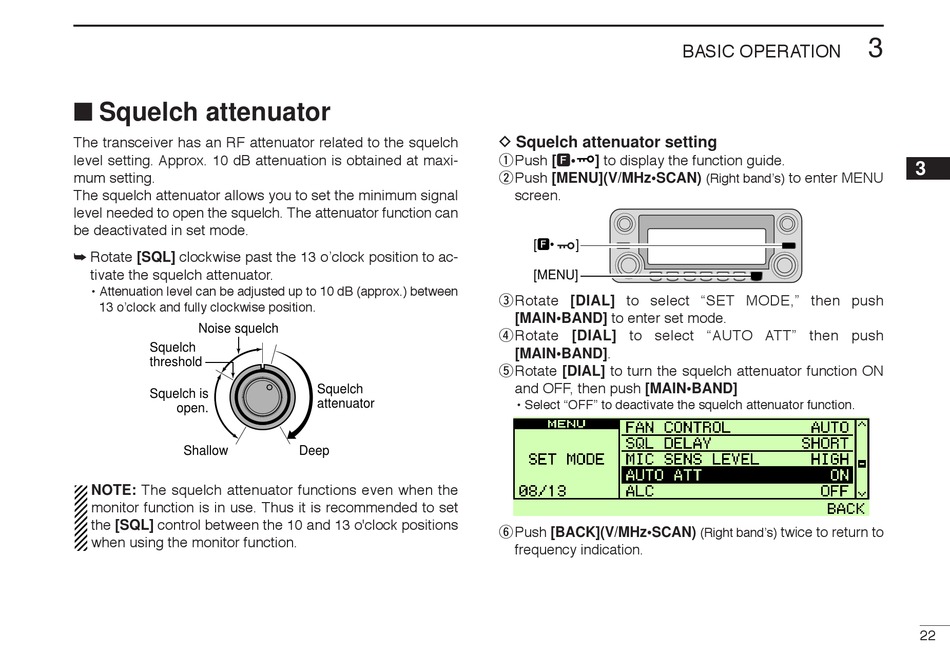

■ Squelch attenuator

The transceiver has an RF attenuator related to the squelch
level setting. Approx. 10 dB attenuation is obtained at maxi-
mum setting.
The squelch attenuator allows you to set the minimum signal
level needed to open the squelch. The attenuator function can
be deactivated in set mode.
➥ Rotate [SQL] clockwise past the 13 o'clock position to ac-
tivate the squelch attenuator.
• Attenuation level can be adjusted up to 10 dB (approx.) between
13 o'clock and fully clockwise position.
Noise squelch
Squelch
threshold
Squelch is
open.
Shallow
NOTE: The squelch attenuator functions even when the
monitor function is in use. Thus it is recommended to set
the [SQL] control between the 10 and 13 o'clock positions
when using the monitor function.
Squelch
attenuator
Deep
D Squelch attenuator setting
q Push [F•
] to display the function guide.
wPush [MENU](V/MHz•SCAN)
screen.
[F• ]
[MENU]
eRotate [DIAL] to select "SET MODE," then push
[MAIN•BAND] to enter set mode.
rRotate [DIAL] to select "AUTO ATT" then push
[MAIN•BAND].
tRotate [DIAL] to turn the squelch attenuator function ON
and OFF, then push [MAIN•BAND]
• Select "OFF" to deactivate the squelch attenuator function.
y Push [BACK](V/MHz•SCAN)
frequency indication.
BASIC OPERATION
to enter MENU
(Right band's)
twice to return to
(Right band's)
