@3
@4

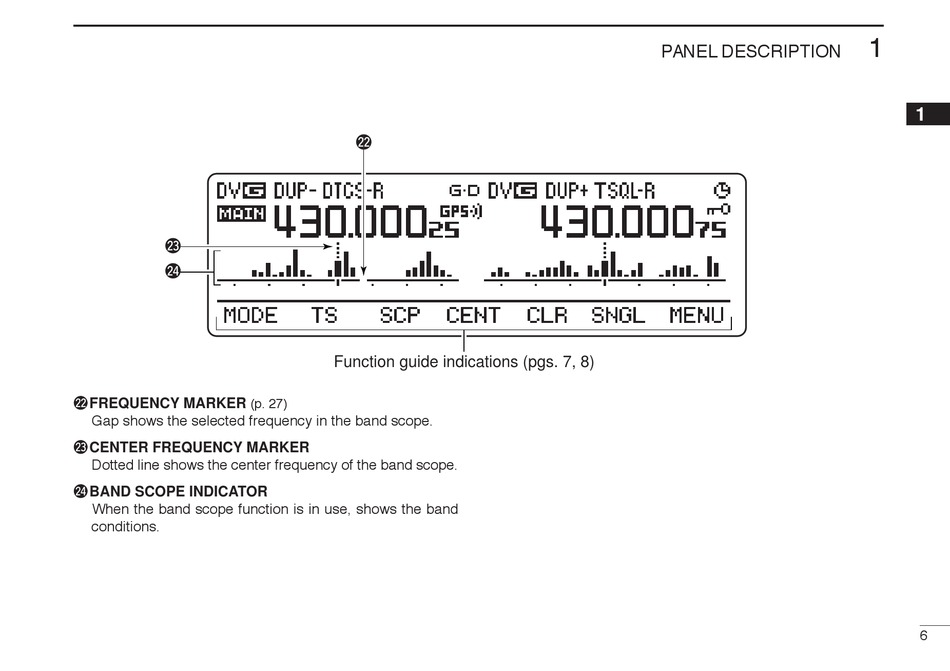

@2 FREQUENCY MARKER
(p. 27)
Gap shows the selected frequency in the band scope.
@3 CENTER FREQUENCY MARKER
Dotted line shows the center frequency of the band scope.
@4 BAND SCOPE INDICATOR
When the band scope function is in use, shows the band
conditions.
@2
Function guide indications (pgs. 7, 8)
PANEL DESCRIPTION
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
6
