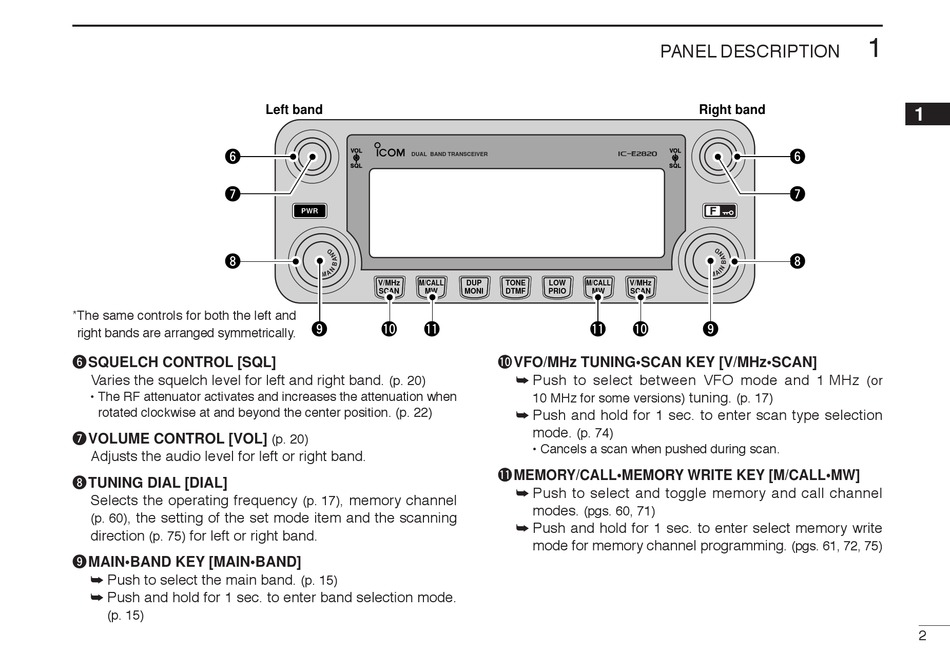

Icom IC-E2820 Instruction Manual page 23

y
u
i
*The same controls for both the left and
right bands are arranged symmetrically.
y SQUELCH CONTROL [SQL]
Varies the squelch level for left and right band.
• The RF attenuator activates and increases the attenuation when
rotated clockwise at and beyond the center position. (p. 22)
u VOLUME CONTROL [VOL]
Adjusts the audio level for left or right band.
i TUNING DIAL [DIAL]
Selects the operating frequency
, the setting of the set mode item and the scanning
(p. 60)
direction for left or right band.
(p. 75)
o MAIN•BAND KEY [MAIN•BAND]
➥ Push to select the main band.
➥ Push and hold for 1 sec. to enter band selection mode.
(p. 15)
Left band
DUAL BAND TRANSCEIVER
V/MHz M/CALL
SCAN MW
o !0 !1
(p. 20)
(p. 20)
, memory channel
(p. 17)
(p. 15)
iE2820
DUP TONE LOW M/CALL V/MHz
MONI DTMF PRIO MW SCAN
!1 !0
!0 VFO/MHz TUNING•SCAN KEY [V/MHz•SCAN]
➥ Push to select between VFO mode and 1 MHz
10 MHz for some versions)
➥ Push and hold for 1 sec. to enter scan type selection
mode.
(p. 74)
• Cancels a scan when pushed during scan.
!1 M EMORY/CALL•MEMORY WRITE KEY [M/CALL•MW]
➥ Push to select and toggle memory and call channel
modes.
(pgs. 60, 71)
➥ Push and hold for 1 sec. to enter select memory write
mode for memory channel programming.
