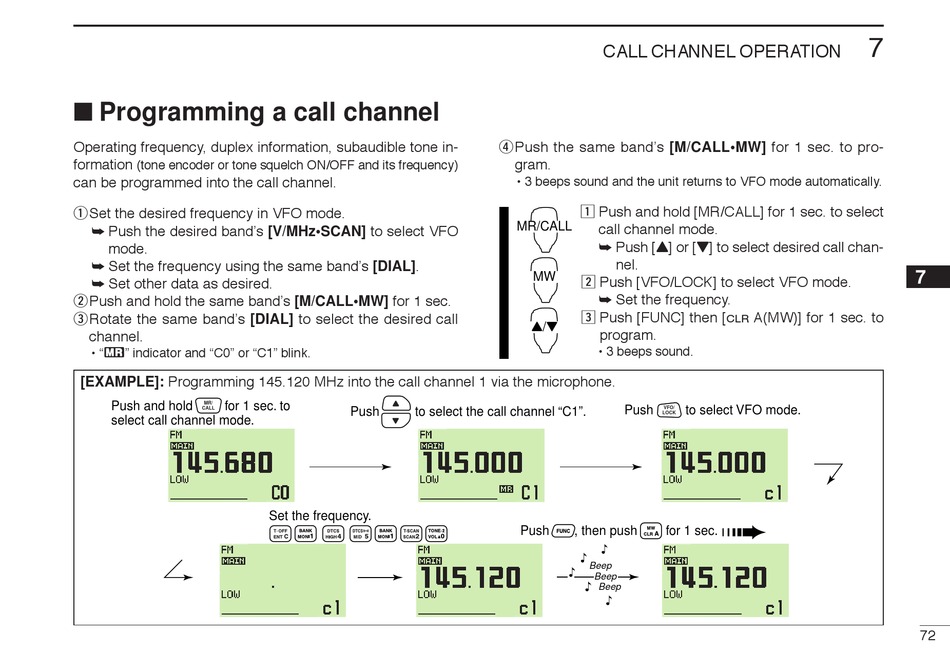

■ Programming a call channel

Operating frequency, duplex information, subaudible tone in-
formation
(tone encoder or tone squelch ON/OFF and its frequency)
can be programmed into the call channel.
q Set the desired frequency in VFO mode.
➥ Push the desired band's [V/MHz•SCAN] to select VFO
mode.
➥ Set the frequency using the same band's [DIAL].
➥ Set other data as desired.
w Push and hold the same band's [M/CALL•MW] for 1 sec.
eRotate the same band's [DIAL] to select the desired call
channel.
• "X" indicator and "C0" or "C1" blink.
[EXAMPLE]: Programming 145.120 MHz into the call channel 1 via the microphone.
Push and hold for 1 sec. to
MR/
CALL
select call channel mode.
Push to select the call channel "C1".
Set the frequency.

CALL CHANNEL OPERATION

rPush the same band's [M/CALL•MW] for 1 sec. to pro-
gram.
• 3 beeps sound and the unit returns to VFO mode automatically.
z Push and hold [MR/CALL] for 1 sec. to select
MR/CALL
call channel mode.
➥ Push [Y] or [Z] to select desired call chan-
nel.
MW
x Push [VFO/LOCK] to select VFO mode.
➥ Set the frequency.
c Push [FUNC] then [
Y/Z
program.
• 3 beeps sound.
Push
VFO/
LOCK
Push , then push for 1 sec.
"
"
Beep
"
Beep
" Beep
"
A(MW)] for 1 sec. to
CLR
to select VFO mode.
➠
