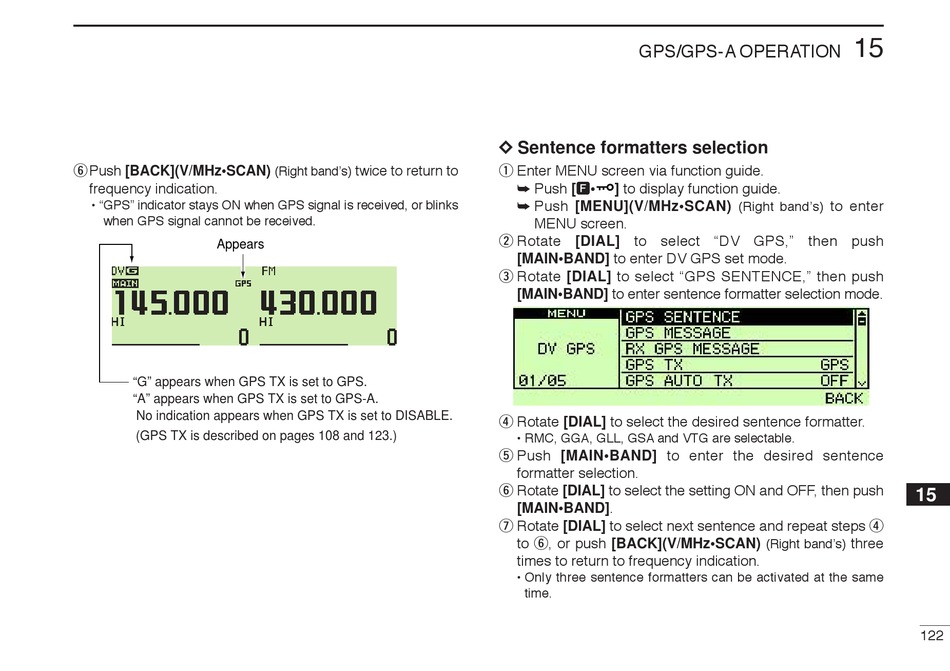

Icom IC-E2820 Instruction Manual page 143

y Push [BACK](V/MHz•SCAN)
frequency indication.
• "GPS" indicator stays ON when GPS signal is received, or blinks
when GPS signal cannot be received.
Appears
"G" appears when GPS TX is set to GPS.
"A" appears when GPS TX is set to GPS-A.
No indication appears when GPS TX is set to DISABLE.
(GPS TX is described on pages 108 and 123.)
twice to return to
(Right band's)
GPS/GPS-A OPERATION
D D Sentence formatters selection
q Enter MENU screen via function guide.
➥ Push [F•
] to display function guide.
➥ Push [MENU](V/MHz•SCAN)
MENU screen.
w Rotate [DIAL] to select "DV GPS," then push
[MAIN•BAND] to enter DV GPS set mode.
e Rotate [DIAL] to select "GPS SENTENCE," then push
[MAIN•BAND] to enter sentence formatter selection mode.
r Rotate [DIAL] to select the desired sentence formatter.
• RMC, GGA, GLL, GSA and VTG are selectable.
t Push [MAIN•BAND] to enter the desired sentence
formatter selection.
y Rotate [DIAL] to select the setting ON and OFF, then push
[MAIN•BAND].
u Rotate [DIAL] to select next sentence and repeat steps r
to y, or push [BACK](V/MHz•SCAN)
times to return to frequency indication.
• Only three sentence formatters can be activated at the same
time.
