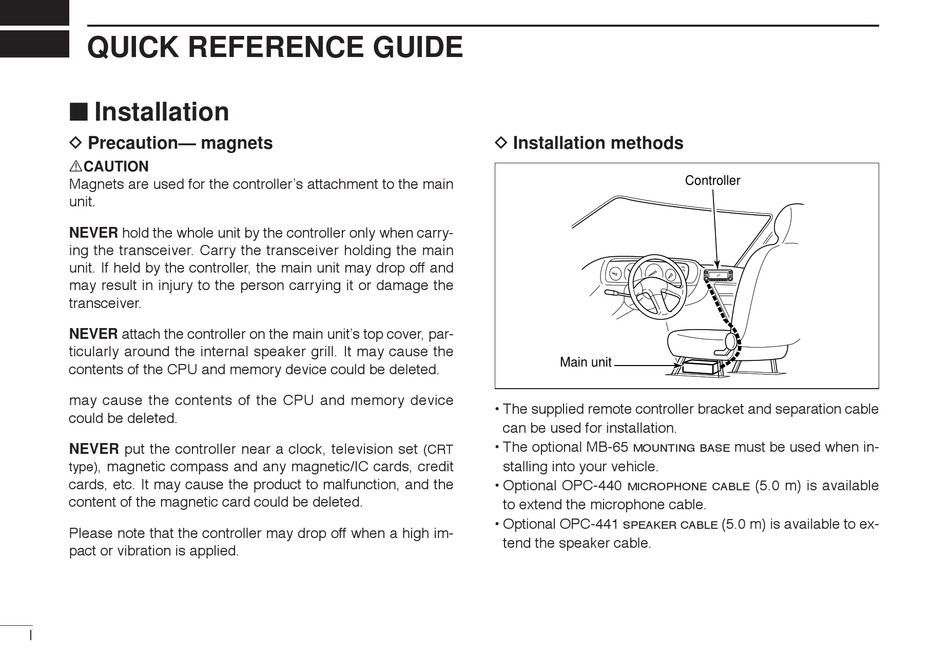

QUICK REFERENCE GUIDE

■ Installation

D Precaution— magnets
RCAUTION
Magnets are used for the controller's attachment to the main
unit.
NEVER hold the whole unit by the controller only when carry-
ing the transceiver. Carry the transceiver holding the main
unit. If held by the controller, the main unit may drop off and
may result in injury to the person carrying it or damage the
transceiver.
NEVER attach the controller on the main unit's top cover, par-
ticularly around the internal speaker grill. It may cause the
contents of the CPU and memory device could be deleted.
may cause the contents of the CPU and memory device
could be deleted.
NEVER put the controller near a clock, television set
, magnetic compass and any magnetic/IC cards, credit
type)
cards, etc. It may cause the product to malfunction, and the
content of the magnetic card could be deleted.
Please note that the controller may drop off when a high im-
pact or vibration is applied.
I
D Installation methods
Main unit
• The supplied remote controller bracket and separation cable
can be used for installation.
• The optional MB-65
(CRT
stalling into your vehicle.
• Optional OPC-440
to extend the microphone cable.
• Optional OPC-441
tend the speaker cable.
Controller
must be used when in-
MOUNTING BASE
(5.0 m) is available
MICROPHONE CABLE
(5.0 m) is available to ex-
SPEAKER CABLE
