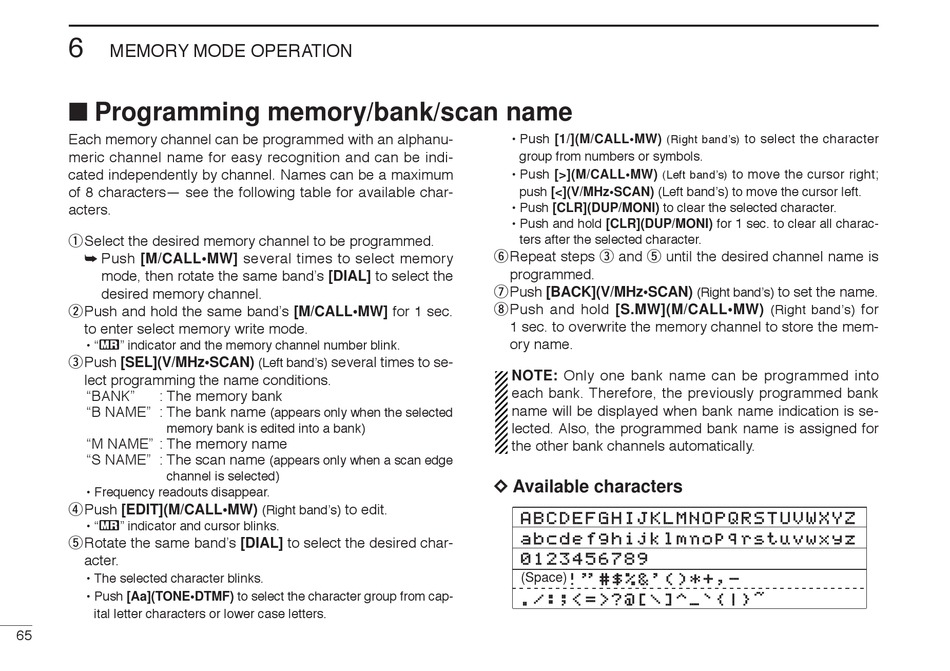

Programming Memory/Bank/Scan Name - Icom IC-E2820 Instruction Manual

6
MEMORY MODE OPERATION

■ Programming memory/bank/scan name

Each memory channel can be programmed with an alphanu-
meric channel name for easy recognition and can be indi-
cated independently by channel. Names can be a maximum
of 8 characters— see the following table for available char-
acters.
q Select the desired memory channel to be programmed.
➥ Push [M/CALL•MW] several times to select memory
mode, then rotate the same band's [DIAL] to select the
desired memory channel.
wPush and hold the same band's [M/CALL•MW] for 1 sec.
to enter select memory write mode.
• "X" indicator and the memory channel number blink.
ePush [SEL](V/MHz•SCAN)
lect programming the name conditions.
"BANK" : The memory bank
"B NAME" : The bank name
memory bank is edited into a bank)
"M NAME" : The memory name
"S NAME" : The scan name
channel is selected)
• Frequency readouts disappear.
r Push [EDIT](M/CALL•MW)
• "X" indicator and cursor blinks.
tRotate the same band's [DIAL] to select the desired char-
acter.
• The selected character blinks.
• Push [Aa](TONE•DTMF) to select the character group from cap-
ital letter characters or lower case letters.
65
several times to se-
(Left band's)
(appears only when the selected
(appears only when a scan edge
to edit.
(Right band's)
• Push [1/](M/CALL•MW)
(Right band's)
group from numbers or symbols.
• Push [>](M/CALL•MW)
(Left band's)
push [<](V/MHz•SCAN) (Left band's) to move the cursor left.
• Push [CLR](DUP/MONI) to clear the selected character.
• Push and hold [CLR](DUP/MONI) for 1 sec. to clear all charac-
ters after the selected character.
yRepeat steps e and t until the desired channel name is
programmed.
uPush [BACK](V/MHz•SCAN)
iPush and hold [S.MW](M/CALL•MW)
1 sec. to overwrite the memory channel to store the mem-
ory name.
NOTE: Only one bank name can be programmed into
each bank. Therefore, the previously programmed bank
name will be displayed when bank name indication is se-
lected. Also, the programmed bank name is assigned for
the other bank channels automatically.
D D Available characters
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
a b c d e f g h i j k l m n o p q r s t u v w x y z
0 1 2 3 4 5 6 7 8 9
(Space)! ' ' # $ % & ' ( ) * + , -
. / : ; < = > ? @ [ \ ] ^ _ ` { | } ~
to select the character
to move the cursor right;
to set the name.
(Right band's)
for
(Right band's)
