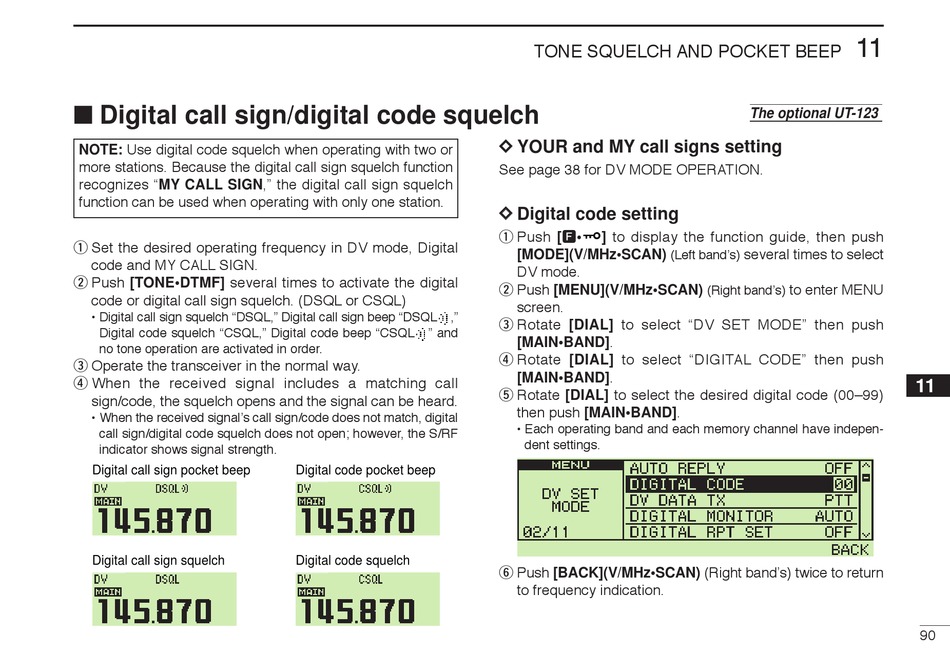

■ Digital call sign/digital code squelch
NOTE: Use digital code squelch when operating with two or
more stations. Because the digital call sign squelch function
recognizes "MY CALL SIGN," the digital call sign squelch
function can be used when operating with only one station.
q Set the desired operating frequency in DV mode, Digital
code and MY CALL SIGN.
w Push [TONE•DTMF] several times to activate the digital
code or digital call sign squelch. (DSQL or CSQL)
• Digital call sign squelch "DSQL," Digital call sign beep "DSQL
Digital code squelch "CSQL," Digital code beep "CSQL
no tone operation are activated in order.
e Operate the transceiver in the normal way.
r When the received signal includes a matching call
sign/code, the squelch opens and the signal can be heard.
• When the received signal's call sign/code does not match, digital
call sign/digital code squelch does not open; however, the S/RF
indicator shows signal strength.
Digital call sign pocket beep
Digital call sign squelch
,"
" and
Digital code pocket beep
Digital code squelch
TONE SQUELCH AND POCKET BEEP
D D YOUR and MY call signs setting
See page 38 for DV MODE OPERATION.
D D Digital code setting
q Push [F•
] to display the function guide, then push
[MODE](V/MHz•SCAN)
(Left band's)
DV mode.
w Push [MENU](V/MHz•SCAN)
screen.
e Rotate [DIAL] to select "DV SET MODE" then push
[MAIN•BAND].
r Rotate [DIAL] to select "DIGITAL CODE" then push
[MAIN•BAND].
t Rotate [DIAL] to select the desired digital code (00–99)
then push [MAIN•BAND].
• Each operating band and each memory channel have indepen-
dent settings.
y Push [BACK](V/MHz•SCAN) (Right band's) twice to return
to frequency indication.
11
The optional UT-123
several times to select
to enter MENU
(Right band's)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
90
