5
DV MODE OPERATION (Optional UT-123 is required)

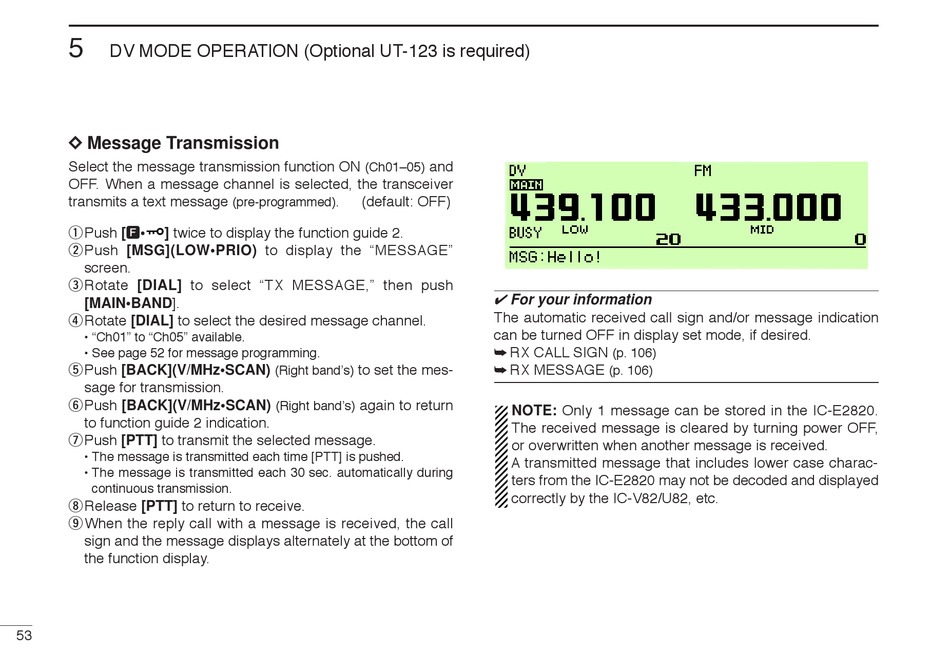

D D Message Transmission
Select the message transmission function ON
OFF. When a message channel is selected, the transceiver
transmits a text message
q Push [F•
] twice to display the function guide 2.
wPush [MSG](LOW•PRIO) to display the "MESSAGE"
screen.
eRotate [DIAL] to select "TX MESSAGE," then push
[MAIN•BAND].
r Rotate [DIAL] to select the desired message channel.
• "Ch01" to "Ch05" available.
• See page 52 for message programming.
tPush [BACK](V/MHz•SCAN)
sage for transmission.
yPush [BACK](V/MHz•SCAN)
to function guide 2 indication.
uPush [PTT] to transmit the selected message.
• The message is transmitted each time [PTT] is pushed.
• The message is transmitted each 30 sec. automatically during
continuous transmission.
i Release [PTT] to return to receive.
oWhen the reply call with a message is received, the call
sign and the message displays alternately at the bottom of
the function display.
53
(Ch01–05)
. (default: OFF)
(pre-programmed)
to set the mes-
(Right band's)
again to return
(Right band's)
and
✔ For your information
The automatic received call sign and/or message indication
can be turned OFF in display set mode, if desired.
➥ RX CALL SIGN
➥ RX MESSAGE
(p. 106)
NOTE: Only 1 message can be stored in the IC-E2820.
The received message is cleared by turning power OFF,
or overwritten when another message is received.
A transmitted message that includes lower case charac-
ters from the IC-E2820 may not be decoded and displayed
correctly by the IC-V82/U82, etc.
(p. 106)
