PANEL DESCRIPTION

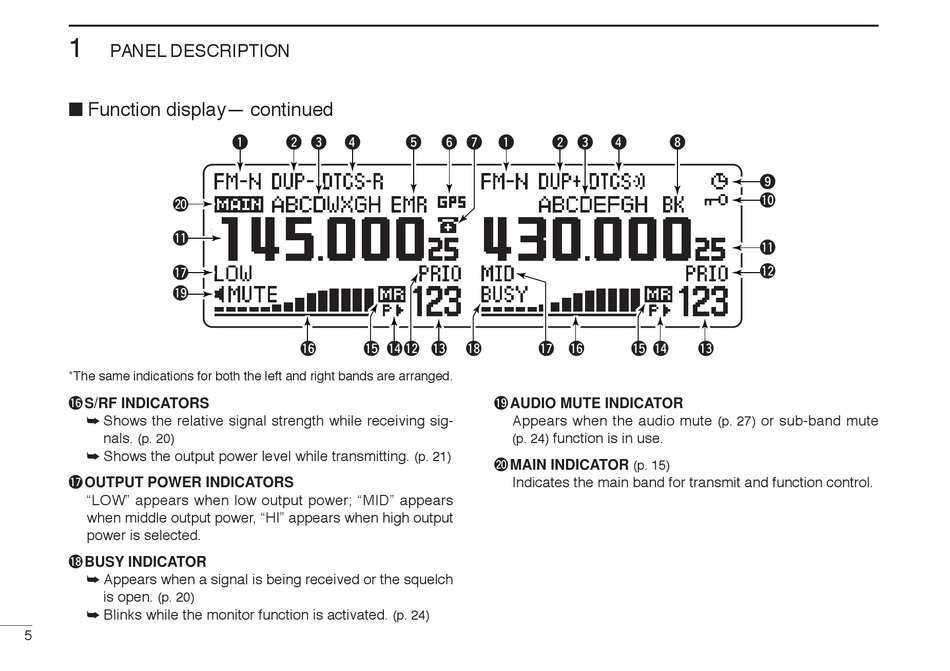

■ Function display— continued
@0
!1
!7
!9
*The same indications for both the left and right bands are arranged.
!6 S/RF INDICATORS
➥ Shows the relative signal strength while receiving sig-
nals.
(p. 20)
➥ Shows the output power level while transmitting.
!7 OUTPUT POWER INDICATORS
"LOW" appears when low output power; "MID" appears
when middle output power, "HI" appears when high output
power is selected.
!8 BUSY INDICATOR
➥ Appears when a signal is being received or the squelch
is open.
(p. 20)
➥ Blinks while the monitor function is activated.
5
!6 !5 !4 !2 !3 !8
(p. 21)
(p. 24)
!7 !6 !5 !4
!9 AUDIO MUTE INDICATOR
Appears when the audio mute
function is in use.
(p. 24)
@0 MAIN INDICATOR
(p. 15)
Indicates the main band for transmit and function control.
o
!0
!1
!2
!3
or sub-band mute
