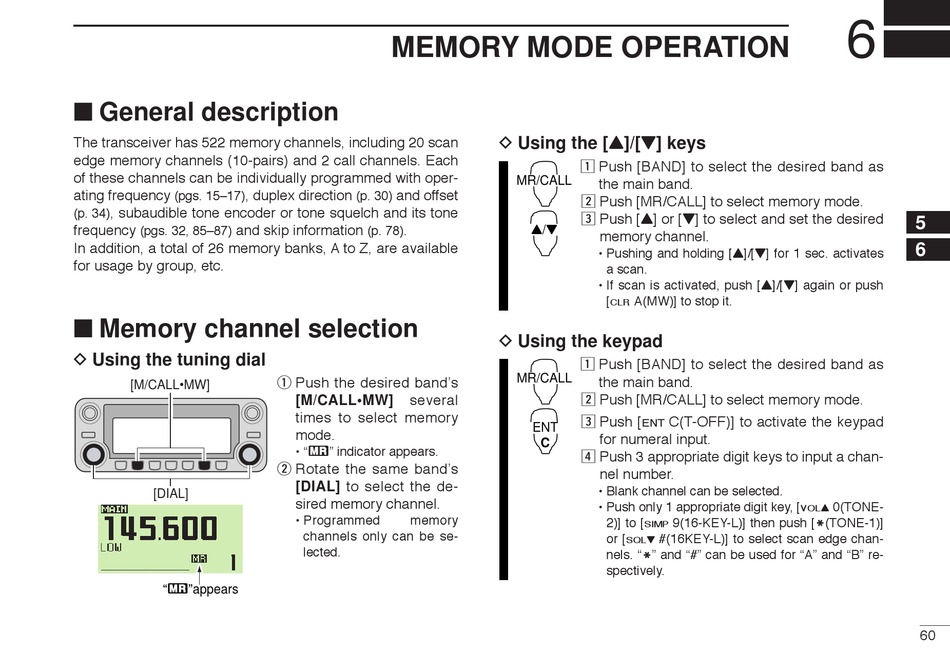

■ General description

The transceiver has 522 memory channels, including 20 scan
edge memory channels (10-pairs) and 2 call channels. Each
of these channels can be individually programmed with oper-
ating frequency , duplex direction
(pgs. 15–17)
, subaudible tone encoder or tone squelch and its tone
(p. 34)
frequency and skip information
(pgs. 32, 85–87)
In addition, a total of 26 memory banks, A to Z, are available
for usage by group, etc.

■ Memory channel selection

D Using the tuning dial
[M/CALL•MW]
[DIAL]
åXßappears

MEMORY MODE OPERATION

and offset
(p. 30)
.
(p. 78)
q Push the desired band's
[M/CALL•MW] several
times to select memory
mode.
• "X" indicator appears.
w Rotate the same band's
[DIAL] to select the de-
sired memory channel.
• Programmed memory
channels only can be se-
lected.
D Using the [Y]/[Z] keys
z Push [BAND] to select the desired band as
MR/CALL
the main band.
x Push [MR/CALL] to select memory mode.
c Push [Y] or [Z] to select and set the desired
Y/Z
memory channel.
• Pushing and holding [Y]/[Z] for 1 sec. activates
a scan.
• If scan is activated, push [Y]/[Z] again or push
[ A(MW)] to stop it.
CLR
D Using the keypad
z Push [BAND] to select the desired band as
MR/CALL
the main band.
x Push [MR/CALL] to select memory mode.
c Push [
C(T-OFF)] to activate the keypad
ENT
ENT
for numeral input.
C
v Push 3 appropriate digit keys to input a chan-
nel number.
• Blank channel can be selected.
• Push only 1 appropriate digit key, [
9(16-KEY-L)] then push [M M (TONE-1)]
2)] to [
SIMP
or [ #(16KEY-L)] to select scan edge chan-
Z
SQL
nels. "M M " and "#" can be used for "A" and "B" re-
spectively.
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0(TONE-
Y
VOL
16
17
18
19
60
