6
CALL CHANNEL OPERATION

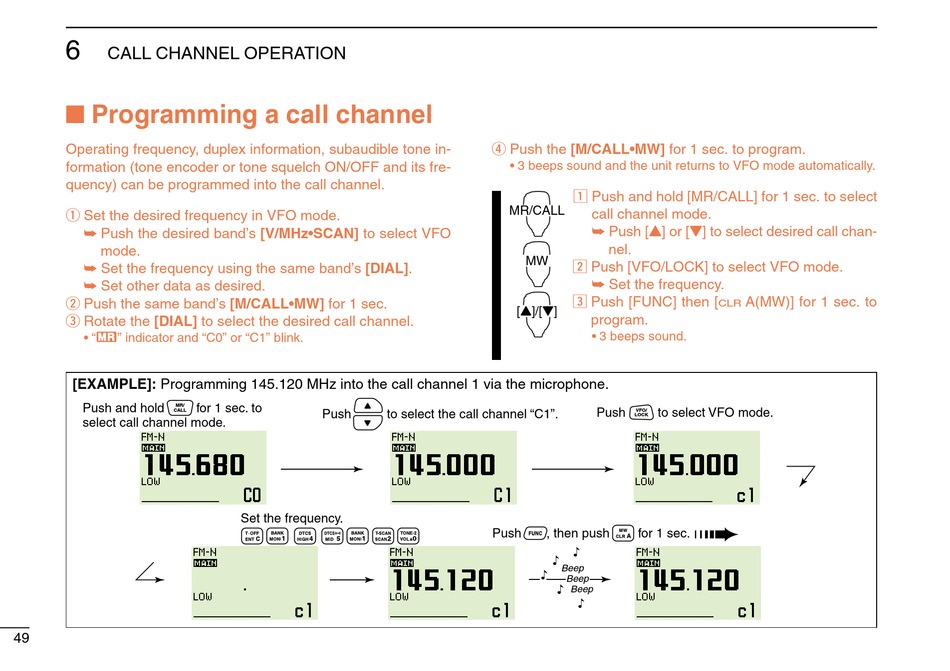

I Programming a call channel

Operating frequency, duplex information, subaudible tone in-
formation (tone encoder or tone squelch ON/OFF and its fre-
quency) can be programmed into the call channel.
q Set the desired frequency in VFO mode.
➥ Push the desired band's [V/MHz•SCAN] to select VFO
mode.
➥ Set the frequency using the same band's [DIAL].
➥ Set other data as desired.
w Push the same band's [M/CALL•MW] for 1 sec.
e Rotate the [DIAL] to select the desired call channel.
• "X" indicator and "C0" or "C1" blink.
[EXAMPLE]: Programming 145.120 MHz into the call channel 1 via the microphone.
Push and hold MR/
CALL
select call channel mode.
49
for 1 sec. to
Push
Set the frequency.
r Push the [M/CALL•MW] for 1 sec. to program.
• 3 beeps sound and the unit returns to VFO mode automatically.
MR/CALL
MW
[Y]/[Z]
to select the call channel "C1".
Push , then push
"
Beep
"
Beep
"
z Push and hold [MR/CALL] for 1 sec. to select
call channel mode.
➥ Push [Y] or [Z] to select desired call chan-
nel.
x Push [VFO/LOCK] to select VFO mode.
➥ Set the frequency.
c Push [FUNC] then [
A(MW)] for 1 sec. to
CLR
program.
• 3 beeps sound.
Push to select VFO mode.
VFO/
LOCK
➠
for 1 sec.
"
Beep
"
