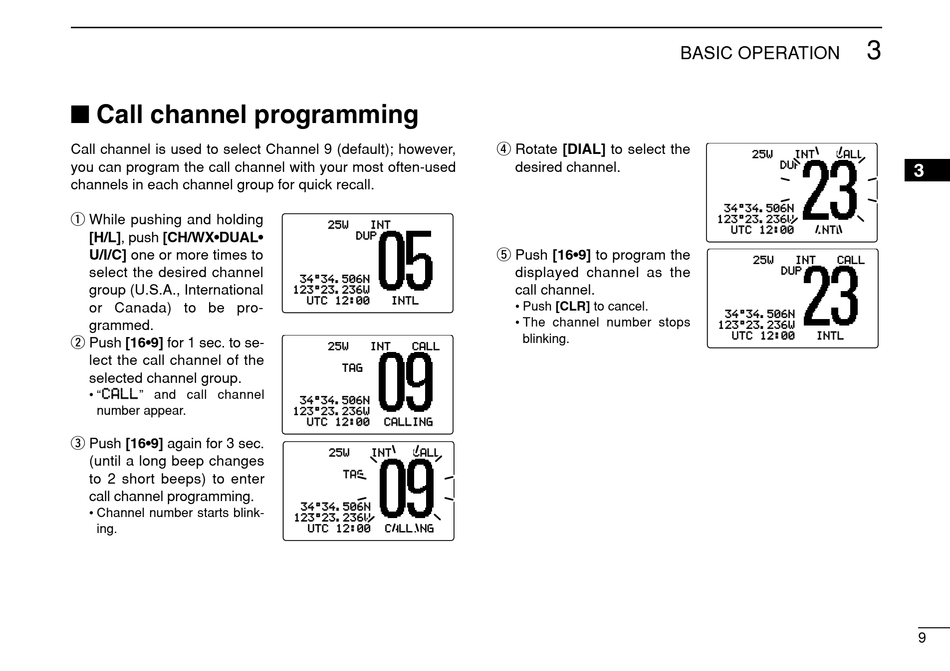

I Call channel programming

Call channel is used to select Channel 9 (default); however,
you can program the call channel with your most often-used
channels in each channel group for quick recall.
q While pushing and holding
[H/L], push [CH/WX•DUAL•
U/I/C] one or more times to
select the desired channel
group (U.S.A., International
or Canada) to be pro-
grammed.
w Push [16•9] for 1 sec. to se-
lect the call channel of the
selected channel group.
• "C C A A L L L L " and call channel
number appear.
e Push [16•9] again for 3 sec.
(until a long beep changes
to 2 short beeps) to enter
call channel programming.
• Channel number starts blink-
ing.
25W 25W INT INT
DUP DUP
34°34.506N 34 34.506N
123°23.236W 123 23.236W
UTC 12 UTC 12:00 :00 INTL INTL
25W 25W INT INT CALL CALL
TAG TAG
34°34.506N 34 34.506N
123 123°23.236W 23.236W
UTC UTC 12 12:00 :00 CALLING CALLING
25W 25W INT INT CALL CALL
TAG TAG
34°34.506N 34 34.506N
123°23.236W 123 23.236W
UTC 12 UTC 12:00 :00 CALLING CALLING
r Rotate [DIAL] to select the
desired channel.
t Push [16•9] to program the
displayed channel as the
call channel.
• Push [CLR] to cancel.
• The channel number stops
blinking.
BASIC OPERATION
25W 25W INT INT CALL CALL
DUP DU
34 34°34.506N 34.506N
123°23.236W 123 23.236W
UTC UTC 12 12:00 :00 INTL INTL
25W 25W INT INT CALL CALL
DUP DUP
34 34°34.506N 34.506N
123 123°23.236W 23.236W
UTC UTC 12 12:00 :00 INTL INTL
